Jabiru 200 and 400 Checklist
By Admin
The J230 is a two-seat development of the four-seat Jabiru J430, optimized for the US light-sport category, which is restricted to two seats. The J230 uses the same wings and fuselage as the J430, but deletes the back seats, leaving a large baggage compartment. While the J430 has a gross weight of 1,540 lb (699 kg), the J230 is restricted to a gross weight of 1,320 lb (599 kg).
The J230 features a strut-braced high-wing, a two-seats-in-side-by-side configuration enclosed cockpit with a large rear baggage compartment, fixed tricycle landing gear and a single engine in tractor configuration. The cockpit is 44 in (112 cm) wide
The aircraft is made from composites. Its 31.3 ft (9.5 m) span wing has an area of 103 sq ft (9.6 m2) and mounts flaps. The aircraft's recommended installed engine power 120 hp (89 kW) and the standard engine used is the 120 hp (89 kW) Jabiru 3300 four-stroke powerplant. Construction time from the supplied kit is estimated as 600 hours. The design is approved for night flying.
The J230 has a standard empty weight of 816 lb (370 kg), which combined with a full fuel capacity of 216 lb (98 kg) and a gross weight of 1,320 lb (599 kg) leaves 288 lb (131 kg) for crew, passenger and cargo with full fuel.
The J230 is listed on the Federal Aviation Administration's list of approved special light-sport aircraft.
20 downloads
0 comments
Submitted
-
Free
Jabiru J430 Flight Manual
By Admin
The Jabiru J430 is one model in a large family of two- and four-seat Australian light aircraft developed as a touring aircraft and provided in kit form by Jabiru Aircraft.
The J430 is constructed from composite materials. The 31.3 ft (9.5 m) span high wing is strut-braced and features winglets. The standard engine is the 120 hp (89 kW) Jabiru 3300 six-cylinder, horizontally opposed, four-stroke aircraft engine. The tricycle landing gear has optional wheel pants. The four-seat cabin features a width of 44 in (112 cm). Construction time from the factory-supplied kit is reported to be 600 hours. Twenty-five examples were completed and flying by the end of 2011.
25 downloads
0 comments
Submitted
-
Free
0 comments
Updated
-
Free

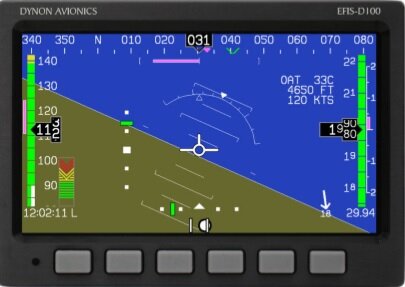

Dynon EFIS-D100 Electronic Flight Information System
By Admin
Revision D For use with firmware version 4.0
9 downloads
0 comments
Updated
-
Free
Flight Design CT Operating Manual
By Admin
Flight Design CT-LSA Pilot Operating Handbook CT2K & CTSW LSA Sport Models
