Spar U Brackets

[pudestcon]

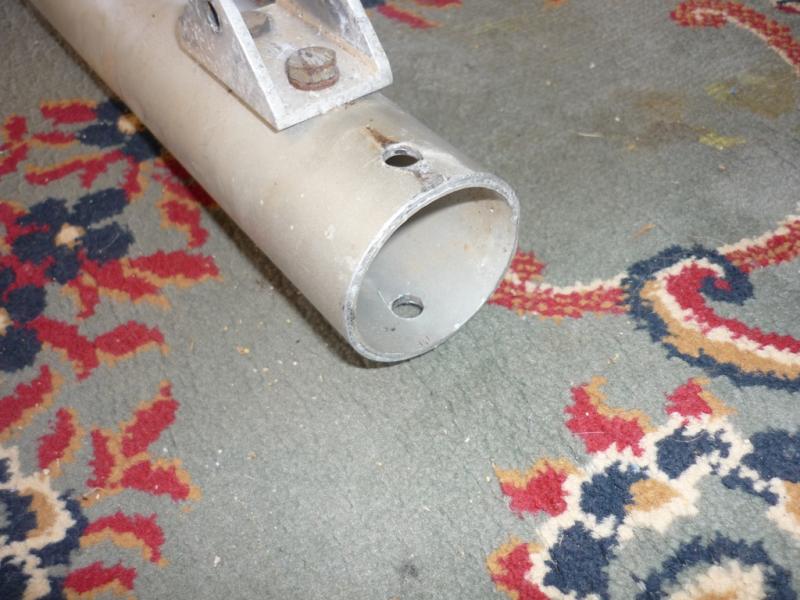

I'm trying to obtain some wing spar U brackets for a mates Gemini. These are the U brackets used to attach the spacer tubes between the trailing and leading edge spars. The photo attached here shows what is currently on the aircraft. These U brackets are not the approved type, having a straight, flat bearing edge to the spar, rather than a concaved surface to mate positively with the spar. The leading edge spar and trailing edge spar are of different diameter tube so the U brackets are different for both spars. I'd be very interested in talking to anyone who has some of these U brackets surplus to requirements that we can acquire.



Thanks in advance for your help.



Pud







[Brownie]

Hi Pud I got some through wade air a couple of years ago he still might have some . You dont know where I could get some wing struts for my T300 do you .



Thanks Brownie





[Guest terry]

Wadeair the go pud as brownie said





[pudestcon]

I'll give Wade a call, thanks guys. I don't know of any struts around the place Brownie, but if you do manage to get second hand ones just be careful that the cast alum connection fittings are sound. Check out the AN on them for details.



Pud





[pudestcon]

Check out the AN on them for details.Pud

In actual fact it is not an AN but a UK mandatory permit directive. Go http://www.recreationalflying.com/showthread.php/104294-Thruster-wing-strut-attachments-UK-mandatory-permit-directive to check it out.

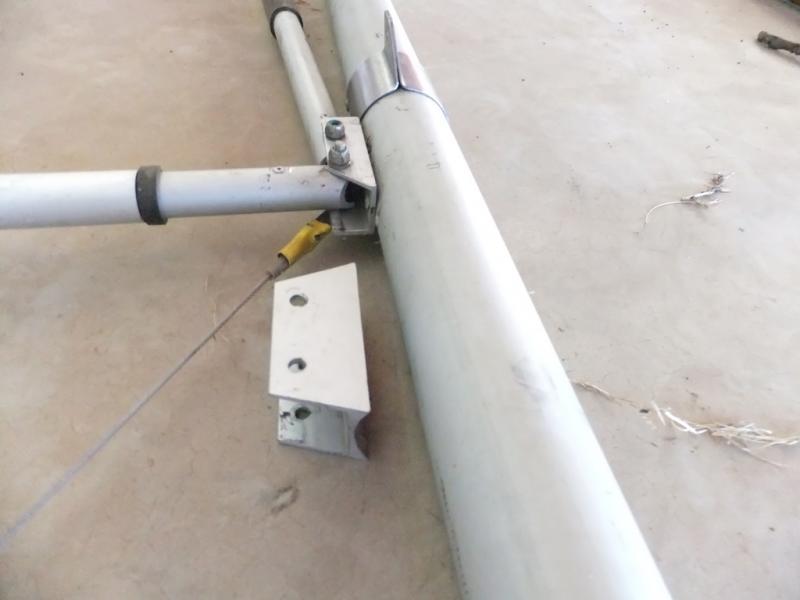

Here is a better photo of the u brackets required. Wade is going to come back to me with a price. I am still interested if anyone has some lying around that they wouldn't mind getting rid of.



Pud







[pudestcon]

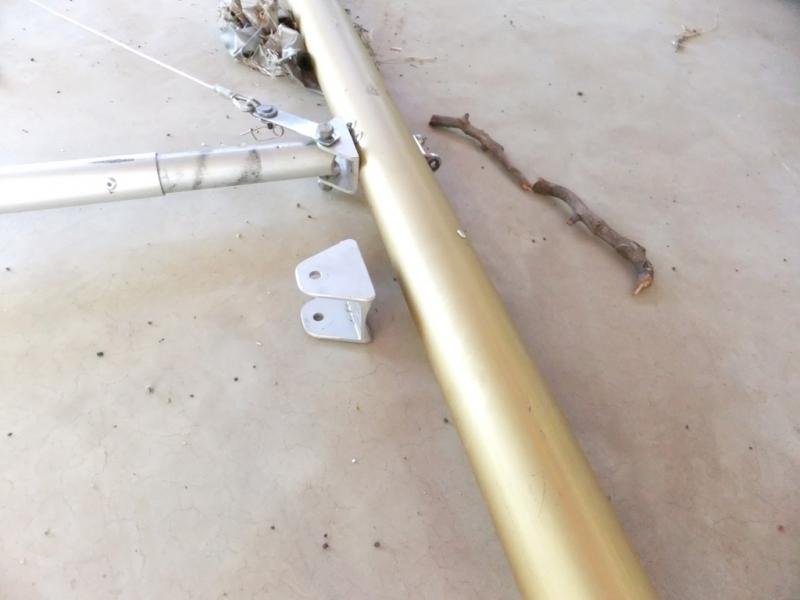

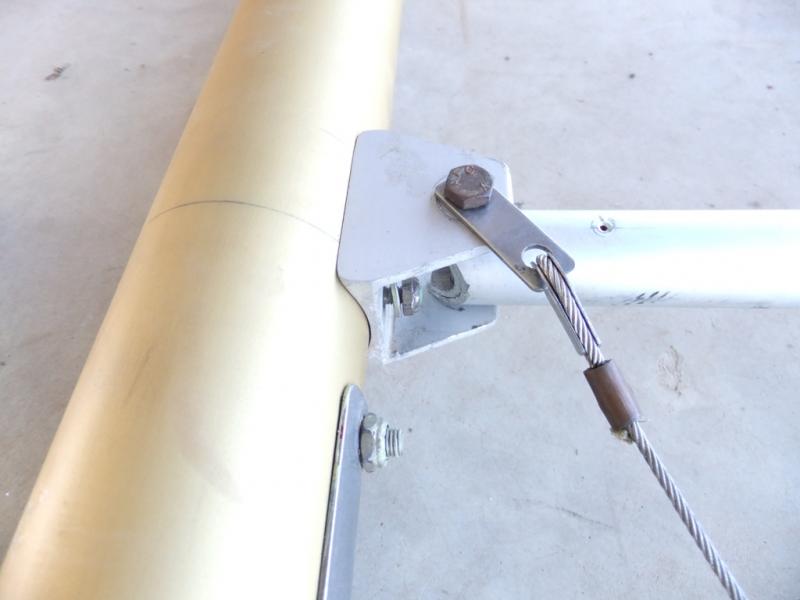

These are the brackets we require and the number of each type.



Cheers,



Pud











[Brett]

What about something like this that is sometimes seen on microlights and handgliders ,,,,,, http://www.aircraftspruce.com/catalog/appages/type1saddles.php





[pudestcon]

What about something like this that is sometimes seen on microlights and handgliders ,,,,,, http://www.aircraftspruce.com/catalog/appages/type1saddles.php

Very interesting Brett, but maybe not quite what is needed in this situation. When I have a bit more time I'll check out that link more.



Thanks,



Pud
