pete8862 Posted February 20, 2011 Posted February 20, 2011 Can anyone tell me about th Murphy Renegade, what are they like to fly? how much room in cockpit? & anything else that you wise forumite might like to pass on. Pete
dazza 38 Posted February 20, 2011 Posted February 20, 2011 Hi Pete never flown one, but have done a bit of research on them and I have crawled all over one. Very Strong.About plus/minus 10 G. The rear cockpit is where it is flown solo.There isnt alot of room between the top wing and front seat to ingress/egress the front cockpit.The Murphy renegade originaly was designed with the 582.Then Murphy did a little redesign for the rotax 912.Than model is the Renegade Spirit also Radials have been fitted as well.They are fairly short coupled, so not having flown one i cant realy comment on the handling qualities.I hope this helps you. 1

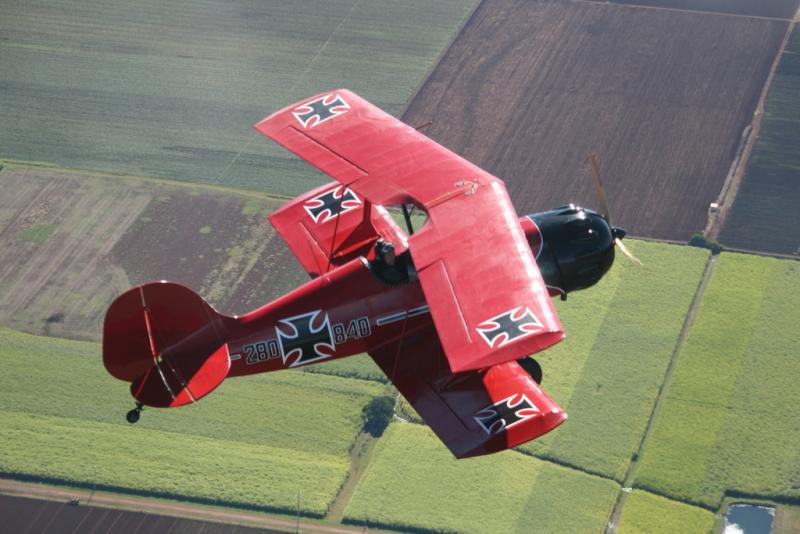

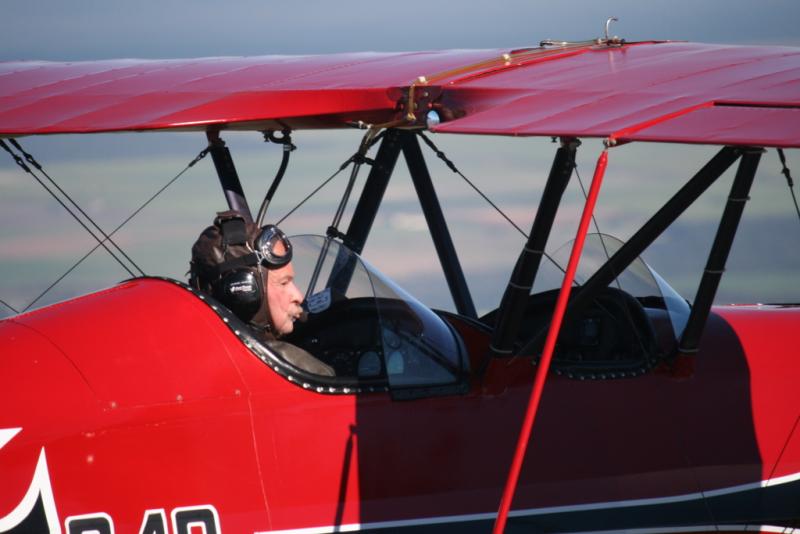

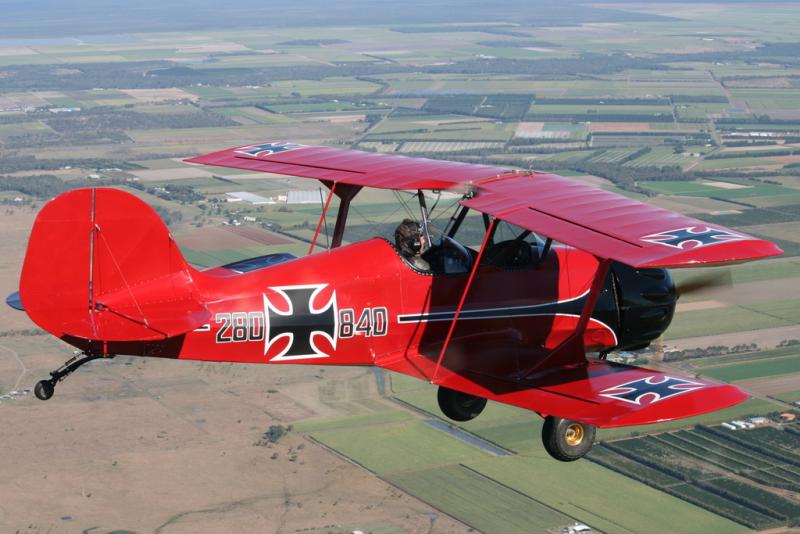

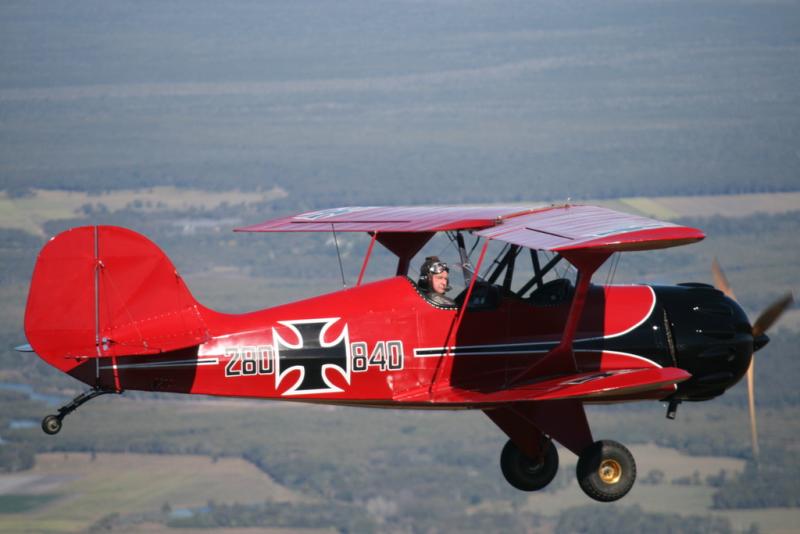

Relfy Posted February 20, 2011 Posted February 20, 2011 Here's a few pics I took of one a few years back. Haven't flown one but sorry. [ATTACH]13164.vB[/ATTACH][ATTACH]13165.vB[/ATTACH][ATTACH]13166.vB[/ATTACH][ATTACH]13167.vB[/ATTACH]
dazza 38 Posted February 21, 2011 Posted February 21, 2011 Here's a few pics I took of one a few years back. Haven't flown one but sorry.[ATTACH=CONFIG]20491[/ATTACH][ATTACH=CONFIG]20492[/ATTACH][ATTACH=CONFIG]20493[/ATTACH][ATTACH=CONFIG]20494[/ATTACH] That aircraft Is owned by Ron Field, he is a member here.
facthunter Posted February 21, 2011 Posted February 21, 2011 Peter Franks (Lethbridge) has one with a 100HP rotax. He is on this site occasionally (Franksy) His wife flys it too, which is a creditable feat on her part. They are a pretty plane, but a bit long in the nose. IF you fitted a RXXXc radial it would be noseheavy without shortening the nose. The front cockpit is a bit of a squeeze getting into. They have no problems with weight with the normal engine. Not FAST as it is a BIpe with wires interplane, but it is strong and permitted aero's under GA reg. Nev
pete8862 Posted February 21, 2011 Author Posted February 21, 2011 Thanks for the information, I have just found out that one is kept at the airfeild I fly at, so I will have a look & it is up for sale aswell. Pete
dazza 38 Posted February 21, 2011 Posted February 21, 2011 Hi Pete, the one at your field is a Silver head 582 . Its fairly cheap.Different nose cowl on it from the standard round cowl.
winsor68 Posted February 21, 2011 Posted February 21, 2011 I have seen the aircraft in question in a classified... Looks very nice but perhaps more of a single seater with the ability to carry the occasional passenger due to the front cockpit entry? I guess you could carry a lot of baggage.

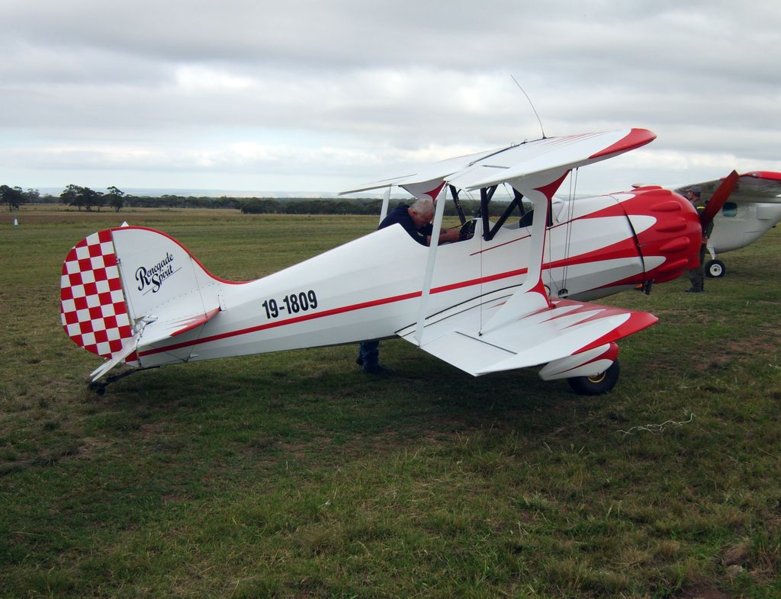

File Posted May 18, 2015 Posted May 18, 2015 [GALLERY=media, 3464]!!!! by File posted May 18, 2015 at 6:40 PM[/GALLERY][GALLERY=media, 3463]!!! by File posted May 18, 2015 at 6:40 PM[/GALLERY][GALLERY=media, 3462]OO-D15-_PlanespottersNet_531709 by File posted May 18, 2015 at 6:40 PM[/GALLERY][GALLERY=media, 3461]10384487_10152598736787974_6348763497413209370_n by File posted May 18, 2015 at 6:40 PM[/GALLERY][GALLERY=media, 3460]((((( by File posted May 18, 2015 at 6:40 PM[/GALLERY][GALLERY=media, 3459](((((((( by File posted May 18, 2015 at 6:40 PM[/GALLERY]Hey! I fly more or less the same AC as the one you mension. Kit build, completely covered with carbon fibre, jabiru 3300 fitted, 120 HP. It handles very smooth, responsive, hardly ever use the trim. Good roll-rate, with a 2-bladed Hercules-prop I get a 950ft/min climb and an 85 mph cruise. I fly solo 95% of the time, 'cause accesing the front cockpit is only for fit, slim people 3
flyerme Posted May 18, 2015 Posted May 18, 2015 Peter Franks (Lethbridge) has one with a 100HP rotax. He is on this site occasionally (Franksy) His wife flys it too, which is a creditable feat on her part. They are a pretty plane, but a bit long in the nose. IF you fitted a RXXXc radial it would be noseheavy without shortening the nose. The front cockpit is a bit of a squeeze getting into. They have no problems with weight with the normal engine. Not FAST as it is a BIpe with wires interplane, but it is strong and permitted aero's under GA reg. Nev Unfortunately Peter Franks past away a couple years back... I can put you in contact with the current owner of peter franks murphy renegade
facthunter Posted May 18, 2015 Posted May 18, 2015 Peter was a good friend of mine. The build of your Nieuport was on this forum. You may be able to get a link to it if it's still there. Peters workmanship was first class, and he did it the hard way from drawings and basic plans. Peter didn't build the Murphy originally. He purchased it damaged and rebuilt it. Yes you have to be a bit agile to get into the front cockpit. That one has an 80 HP Rotax (I think) 100 HP would be enough, Nev 2
facthunter Posted May 20, 2015 Posted May 20, 2015 Pics often flatter but she looks just as good in the flesh. Murphy Renegade is a good look. Nev
Mcbiggles95 Posted June 26, 2018 Posted June 26, 2018 Thanks for the information, I have just found out that one is kept at the airfeild I fly at, so I will have a look & it is up for sale aswell.Pete Did you end up buying one? I am looking at buying a kit but would love to have a look at one in the flesh 1st .
winsor68 Posted June 26, 2018 Posted June 26, 2018 I found this on Youtube.https://www.youtube.com/watch?v=2VqXlxk629o
facthunter Posted June 26, 2018 Posted June 26, 2018 Not fast and getting into the front seat is a bit difficult. That one has a Rotax 80 hp engine.. Looks the Part, really. Nev
Mcbiggles95 Posted June 26, 2018 Posted June 26, 2018 Does anyone know of any other kit build biplanes out there? Was struggling to find any biplane s just some plans, and the Renegade
rgmwa Posted June 26, 2018 Posted June 26, 2018 Does anyone know of any other kit build biplanes out there? Was struggling to find any biplane s just some plans, and the Renegade I suspect most of these are plans built but some interesting aircraft here. Biplanes You can Build Also worth checking the Kitplanes magazine buyer's guide: They update the list of available aircraft every year: KITPLANES The Independent Voice for Homebuilt Aviation - Aircraft Directory Directions
flyerme Posted June 26, 2018 Posted June 26, 2018 Aerodrome aircaft !!! Fisher aircraft !! Just To name a couple 1
facthunter Posted June 26, 2018 Posted June 26, 2018 The y look great and are strong but more draggy (slower) and the ailerons drag in the long grass. Leave the lower wings off and fly a hi wing tail dragger and it goes through the farm gate(s) and taxis on the goat tracks. Nev 1
fly_tornado Posted June 27, 2018 Posted June 27, 2018 Does anyone know of any other kit build biplanes out there? Was struggling to find any biplane s just some plans, and the Renegade buy a project from the US, you'll save years and thousands
facthunter Posted June 27, 2018 Posted June 27, 2018 A Renegade is a lot of work. Better with a heavier motor which allows a shorter nose, but what would one use?. A biplane is more work and more drag.. Highwing with a strut is the simplest/strongest for around 90 knot planes and you can invert it and still exit. Nev
billwoodmason Posted June 27, 2018 Posted June 27, 2018 Fisher Flying Products have a biplane called a “Celebrity”. An aquantence (Derik Dyer) built a beautiful example powered by a Rotec radial, he used to take it to a lot of fly-in’s. Prior to the Celebrity he had a Fisher 3/4 Tiger Moth with a 2200 Jabiru motor. He is an accomplished builder an was helping others with their Fisher planes. He also published at least one article in the RAA mag. Google Fisher Flying Products for pics of their kits as a starting point. Cheers. 1
