Aileron control system photos

[old man emu]

Would anyone have some photos of the aileron control system in the wing of a Morgan design?



OME





[David Isaac]

Jees OME you must have been asking for the secret of the century ... or maybe all those Morgan builders have got their heads in fuselages and haven't seen your post yet.



So I thought I might reply and stir them all up and put your thread at the top of the list for you ...





[facthunter]

Pearls, and no one is picking them up. If you were peddling "Feelthy peectures" might be different.. Nev





[kgwilson]

Its pretty simple, just a cable in the wing with pushrods on either end to the aileron horn and to the control column (quick release on mine for easy wing removal from the control column).

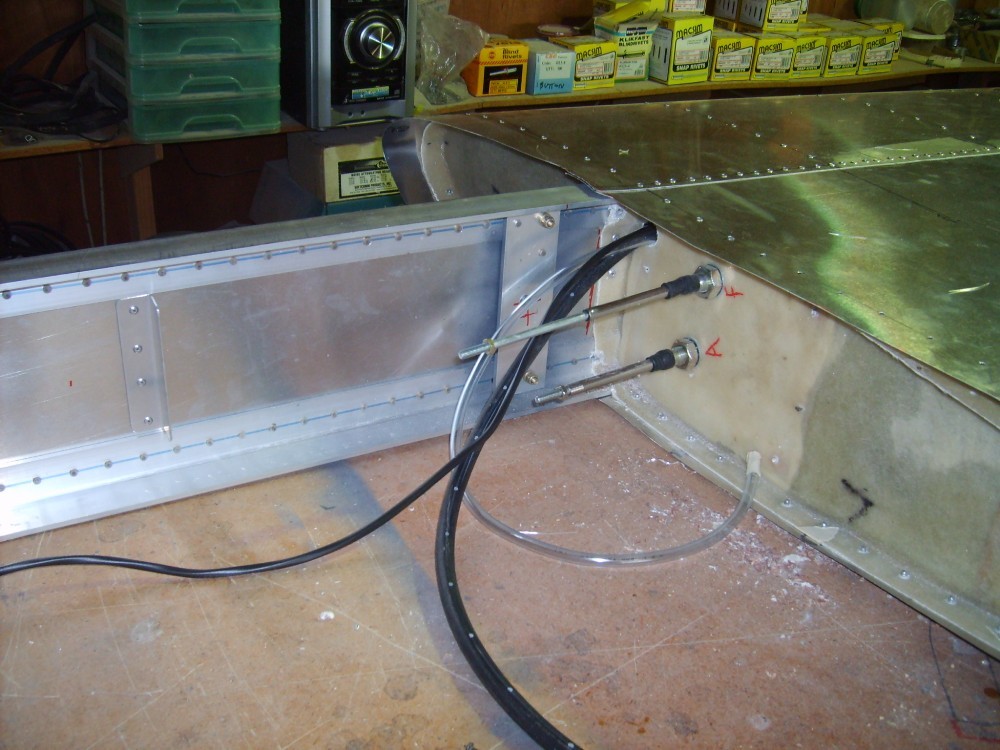

There is a very fancy code for each cable. A = Aileron & F = Flap. The wing is upside down on the bench.



Kevin







[Sloper]

What fuel tank size did you fit in?



And yes l have been busy in the garage.



regards Bruce





[kgwilson]

Hi Bruce,

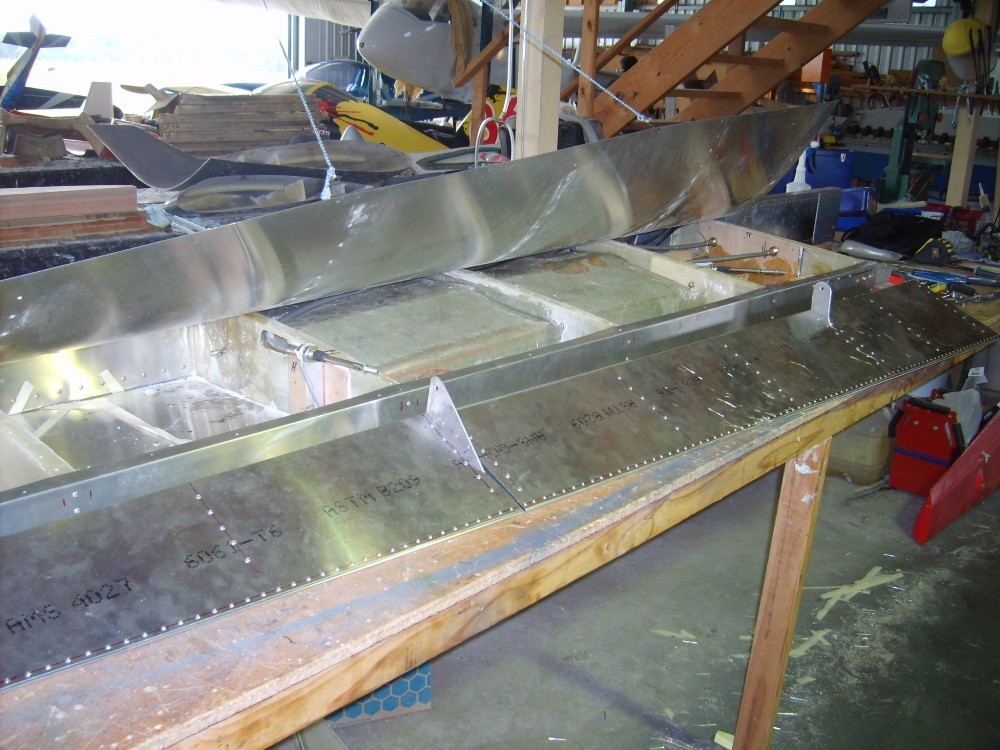

This is not the wing of my Sierra but that of Kevin Harrison's one when it was built at Taree. I just happened to be there when the wing walks were being done so the bottom skin was nicely peeled back for a photo of the innards. The wing tanks are 35-40 litres a side as I recall with a 100 litre fuselage tank. Kevin or Alan Marriette may wish to elaborate. I haven't got to the wings of mine yet. I spent about 6 weeks ripping the new house to bits to fit in a new bigger Kitchen as per my wife's specifications but am back into the build as of tomorrow as I have just got my garage back.



Cheers



Kevin





[Virago]

Kevin, great to see you back on the project! Hope the kitchen all went well! John.





[Guest Maj Millard]

Great to see all you homebuilders hard at it out there !!.......I spent four years of my life designing and building the one above, and yes , it was all worth it.....................Maj...
