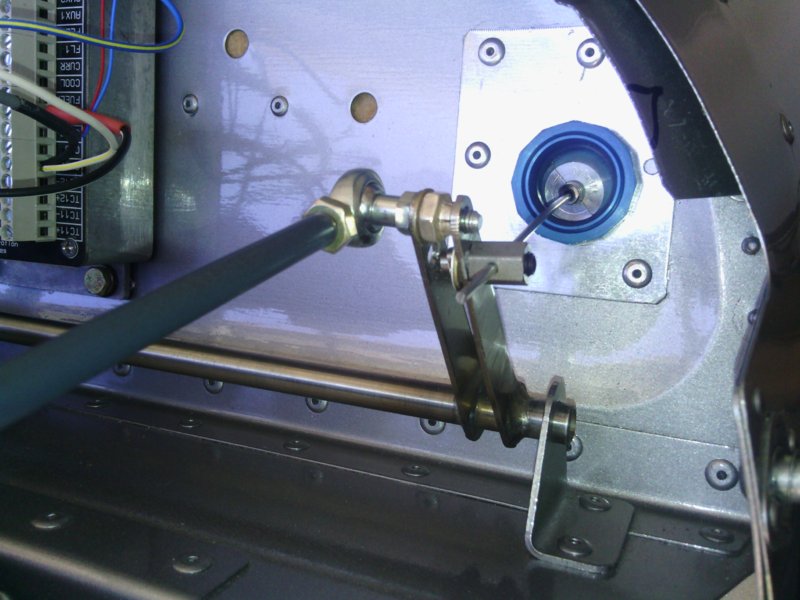

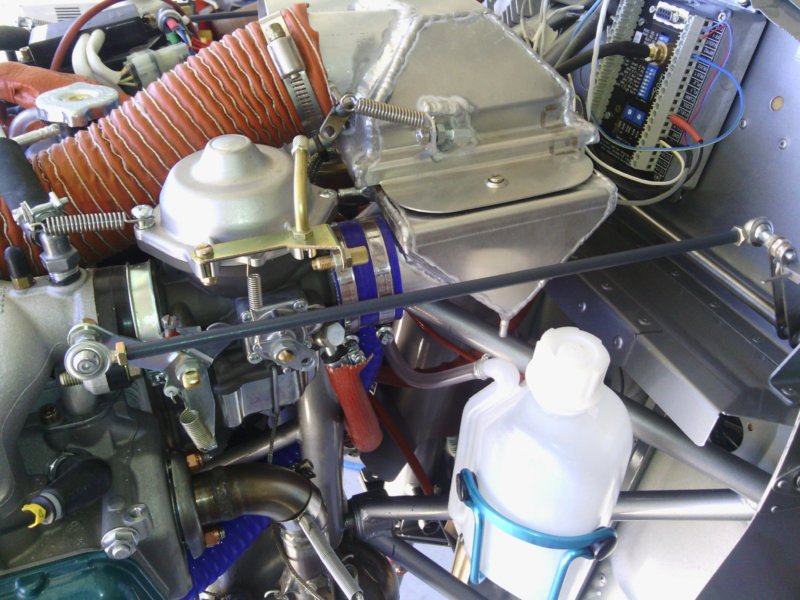

rick morawski Posted December 30, 2013 Share Posted December 30, 2013 I have been asked to show my throttle setup so here it is. I used standard GA type throttle controls with solid wire (can push and pull) connected to the throttle torque tube crank on the firewall (drilled an extra hole). From there to the carb connection I used 1/4" CrMo tube tapped out (left hand thread one end) and spherical bearings at each end. This removes the cable problem from the equation and super easy carb balancing. Most everybody asks "What about the motor movement on startup?" You would think it affects it but I haven't experienced it, it runs extremly smooth and rarely needs adjusting for sync. One installation has over 600 hrs no probs. I also add that this was not my idea. I saw it on a web page ages ago, University of Hawaii Engineering or something. They (students) built a CH701 and didn't like the cables either, so used the rods. I've copied the idea on 3 or 4 aircraft, no probs. Use it if you like, don't if you don't. Cheers Rick 2 Link to comment Share on other sites More sharing options...
Hongie Posted December 30, 2013 Share Posted December 30, 2013 Top idea rick. Lot less chance of snapping one of those... I might steal this for my 601 :) Link to comment Share on other sites More sharing options...

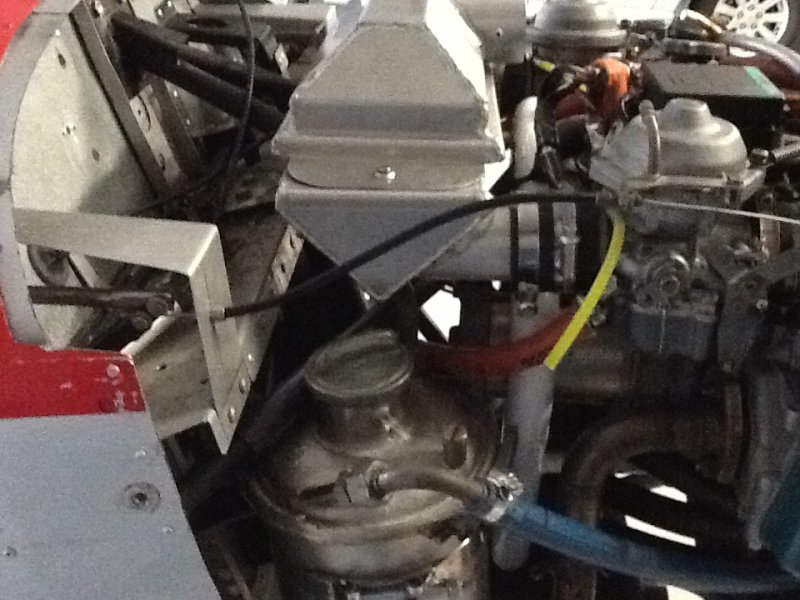

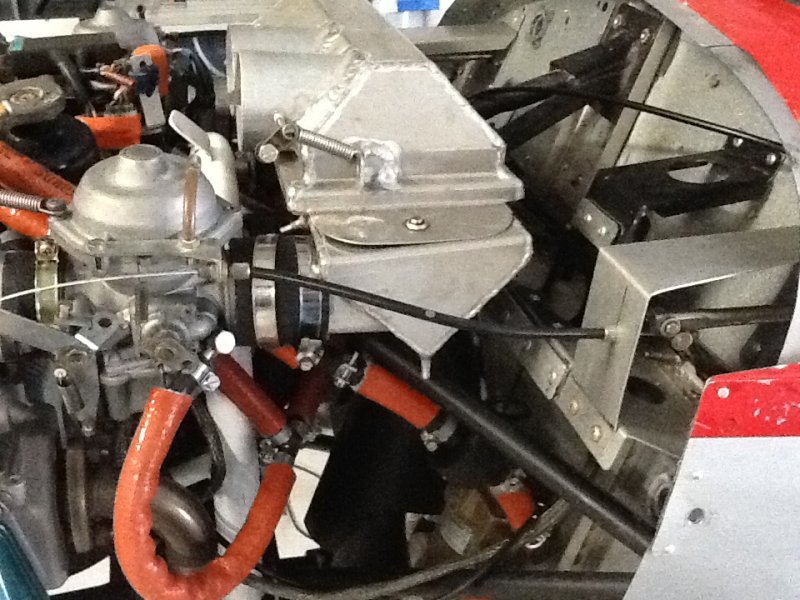

JG3 Posted December 30, 2013 Share Posted December 30, 2013 We found these dual throttle cables, designed especially for the dual carburetor 912 series, to be excellent. Very high quality engineered construction. Smooth action, good friction adjustment. Sturdy cables for push-pull security. Got rid of that crap firewall torque tube contraption, and now carburetors stay in balance forever.... Only have one control knob in the cockpit, but don't need two except for training.... http://www.mcfarlane-aviation.com/Products/?CategoryID=260&ID=76489575& Also available from Aircraft Spruce. JG Link to comment Share on other sites More sharing options...
Kyle Communications Posted December 30, 2013 Share Posted December 30, 2013 JG did you mount yours on the left side of the panel or did you shift it towards the centre a bit…also how does it handle the S bend to the righthand carb Link to comment Share on other sites More sharing options...
Kyle Communications Posted December 30, 2013 Share Posted December 30, 2013 I have been asked to show my throttle setup so here it is.I used standard GA type throttle controls with solid wire (can push and pull) connected to the throttle torque tube crank on the firewall (drilled an extra hole). From there to the carb connection I used 1/4" CrMo tube tapped out (left hand thread one end) and spherical bearings at each end. This removes the cable problem from the equation and super easy carb balancing. Most everybody asks "What about the motor movement on startup?" You would think it affects it but I haven't experienced it, it runs extremly smooth and rarely needs adjusting for sync. One installation has over 600 hrs no probs. I also add that this was not my idea. I saw it on a web page ages ago, University of Hawaii Engineering or something. They (students) built a CH701 and didn't like the cables either, so used the rods. I've copied the idea on 3 or 4 aircraft, no probs. Use it if you like, don't if you don't. Cheers Rick [ATTACH]26656[/ATTACH] [ATTACH]26657[/ATTACH] My only concern with the solid rods would be engine movement on the mount this would shift the rpm a bit I would think…have you done any engine runs yet? Link to comment Share on other sites More sharing options...
Kyle Communications Posted December 30, 2013 Share Posted December 30, 2013 I see you have the rdac unit on the firewall inside the cowl…..what about the heat inside the cowl ? I have mine placed inside the cabin on the right hand side on a bracket I made on two of the inside skin longhorns Link to comment Share on other sites More sharing options...
JG3 Posted December 30, 2013 Share Posted December 30, 2013 JG did you mount yours on the left side of the panel or did you shift it towards the centre a bit…also how does it handle the S bend to the righthand carb Both Hans and I mounted the knob in the same position as original on the left. Bought the units with 6 ft cables, and snaked the right side around to the carb in an easy sweep. Kept the left side cable same length and just made a large diameter 360 behind the panel. Theory for that was to help ensure carb balance. Don't know if that was necessary for balance, but it sure works well.... JG Link to comment Share on other sites More sharing options...
rick morawski Posted December 30, 2013 Author Share Posted December 30, 2013 My only concern with the solid rods would be engine movement on the mount this would shift the rpm a bit I would think…have you done any engine runs yet? This not the first time I've done this, no problems on others I have installed the rods on have over 600hrs. The double cables JG suggests are good, but I like to have two throttles, just my preference. 1 Link to comment Share on other sites More sharing options...
rick morawski Posted December 30, 2013 Author Share Posted December 30, 2013 I see you have the rdac unit on the firewall inside the cowl…..what about the heat inside the cowl ? I have mine placed inside the cabin on the right hand side on a bracket I made on two of the inside skin longhorns You're scaring me now Mark, I put it there for ease of wiring, have done one before with no probs, maybe I'll insulate it. Link to comment Share on other sites More sharing options...
Hadyn Bell Posted May 11, 2014 Share Posted May 11, 2014 Thanks for the inspiration, very happy with the result. Link to comment Share on other sites More sharing options...
Kyle Communications Posted May 11, 2014 Share Posted May 11, 2014 Hayden how are things going?..long time no hear Link to comment Share on other sites More sharing options...
rick morawski Posted May 11, 2014 Author Share Posted May 11, 2014 [ATTACH]28907[/ATTACH] Thanks for the inspiration, very happy with the result. Looks great Hayden, nice neat engine install. How long till first flight? Link to comment Share on other sites More sharing options...
Ultralights Posted May 11, 2014 Share Posted May 11, 2014 what did you use to make the throttle rods? Link to comment Share on other sites More sharing options...
rotax618 Posted February 8, 2016 Share Posted February 8, 2016 Link to comment Share on other sites More sharing options...
rick morawski Posted February 8, 2016 Author Share Posted February 8, 2016 [/quote="rotax618, post: 545223, member: 3283]"The problem with a rigid connection betweer the carb and the firewall is the movement of the engine under thrust load, this is particularly bad on the VG bed mount models. I used a bowden cable with a slight kink (the same amount of kink each side) this allows the engine some movement without moving the throttle. Have you tried it? I have put these rods on five or six savannahs, bed mount and ring mount and have never had any problems. I was cautious on the first one (a bed mount), but thought hey I can just go back to Bowden cables. So I made a set and they worked a treat, no vibration problems, and adjusting carb balance is micrometer fine. Link to comment Share on other sites More sharing options...
rotax618 Posted February 10, 2016 Share Posted February 10, 2016 We tried straight rods on a VG years ago and found that the forward movement of the engine on the bed mount pulled the throttle back from WOT when the throttle linkage was adjusted to the forward stop when the engine was stopped. If your system works ! Great. Link to comment Share on other sites More sharing options...
dan tonner Posted February 23, 2016 Share Posted February 23, 2016 I have been asked to show my throttle setup so here it is.I used standard GA type throttle controls with solid wire (can push and pull) connected to the throttle torque tube crank on the firewall (drilled an extra hole). From there to the carb connection I used 1/4" CrMo tube tapped out (left hand thread one end) and spherical bearings at each end. This removes the cable problem from the equation and super easy carb balancing. Most everybody asks "What about the motor movement on startup?" You would think it affects it but I haven't experienced it, it runs extremly smooth and rarely needs adjusting for sync. One installation has over 600 hrs no probs. I also add that this was not my idea. I saw it on a web page ages ago, University of Hawaii Engineering or something. They (students) built a CH701 and didn't like the cables either, so used the rods. I've copied the idea on 3 or 4 aircraft, no probs. Use it if you like, don't if you don't. Cheers Rick [ATTACH]26656[/ATTACH] [ATTACH]26657[/ATTACH] Hello Rick; I am going to equip my XL VG with solid rod throttle controls based on your pioneer work using them; I have a couple of questions about the hardware. With reference to your replies to erd72's thread "Throttle Control", I plan to use a pair of eyeball-type sockets at the firewall (Aircraft Spruce 05-00958 which have the 1/4" hole to fit the outer cable sheath) with a pair of A-820 Friction Lock Controls. (An aside: all three North American Aircraft Spruce warehouses are out-of-stock on the 05-12250 "Cable Safe" items with no information regarding re-stocking. The manufacturer may no longer be in business.) I already have the R&L hand thread Aurora Stud-type Bearings, the CroMo tubing and the R&L hand thread taps for the rods. My questions: After the eyeball mount is secured on the firewall, is the sphere still free to rotate or is it clamped in a fixed orientation? How is the outer cable sheath of the control attached to the eyeball itself - that is to say, what prevents the outer sheath from moving fore and aft through the 1/4" hole in the sphere? What was the reason you opted for 6061 aluminum rods for later prototypes instead of staying with the CroMo tubing? I follow all your posts - along with those of others who have done wonderful things with the Savs - and really appreciate the Recreational Flyer forum. Regards, Dan Link to comment Share on other sites More sharing options...
JerzyGeorge Posted February 23, 2016 Share Posted February 23, 2016 Hi Rick , I think sometime ago you asked me about under carburettors trays , I have found a photo of the good one . Please have a look , I believe you similar not exactly same as accessories from Rotax but a bit expensive. Link to comment Share on other sites More sharing options...
rick morawski Posted February 23, 2016 Author Share Posted February 23, 2016 Hello Rick;I am going to equip my XL VG with solid rod throttle controls based on your pioneer work using them; I have a couple of questions about the hardware. With reference to your replies to erd72's thread "Throttle Control", I plan to use a pair of eyeball-type sockets at the firewall (Aircraft Spruce 05-00958 which have the 1/4" hole to fit the outer cable sheath) with a pair of A-820 Friction Lock Controls. (An aside: all three North American Aircraft Spruce warehouses are out-of-stock on the 05-12250 "Cable Safe" items with no information regarding re-stocking. The manufacturer may no longer be in business.) I already have the R&L hand thread Aurora Stud-type Bearings, the CroMo tubing and the R&L hand thread taps for the rods. My questions: After the eyeball mount is secured on the firewall, is the sphere still free to rotate or is it clamped in a fixed orientation? How is the outer cable sheath of the control attached to the eyeball itself - that is to say, what prevents the outer sheath from moving fore and aft through the 1/4" hole in the sphere? What was the reason you opted for 6061 aluminum rods for later prototypes instead of staying with the CroMo tubing? I follow all your posts - along with those of others who have done wonderful things with the Savs - and really appreciate the Recreational Flyer forum. Regards, Dan Hi Dan, 1) after the eyeball mount is clamped up the ball is clamped. It is only to get the correct angle on the control cable. 2) the outer sheath is supposed to be clamped up as well when you tighten the eyeball, but I found that it didn't (maybe tolerances on the cable sheath are nominal) so I fixed it by carefully draw filing the flats between the ball halves so it clamped up nice. 3) the only reason was its easier to put a spanner on the hex bar when tightening the locknut. With the Cromo you have to hold it with pliers or vice grips so it ends up looking a bit munted. When cutting the inner wire to length don't cut it neat to length, leave it long till you're sure. Also don't have the knob right up on the ferrule part at full throttle, always have about 1/2" -1" of s/s rod showing at full throttle so there is no strain point as the engine moves. Hope it goes well for you. Cheers Rick Link to comment Share on other sites More sharing options...
rick morawski Posted February 23, 2016 Author Share Posted February 23, 2016 Hi Rick ,I think sometime ago you asked me about under carburettors trays , I have found a photo of the good one . Please have a look , I believe you similar not exactly same as accessories from Rotax but a bit expensive. Hi George Those ones look like they would suffer from engine shake, looks like there's maybe been a crack repair where the flange bend is. (See the short weld) The rotax ones have a continuous curve from the flange so they are rigid with no fatigue point. Only problem is you got to take the carb off to check the bowls, pain in the a$$. Link to comment Share on other sites More sharing options...
JerzyGeorge Posted February 23, 2016 Share Posted February 23, 2016 Yes I agree, well spotted. I have different on my plane, not so pretty but functional they are flatter and supported from underneth from exhaust pipe which is directly under the carburator. This the whole idea to shield carby from hot pipe and possible fuel leak catchment. Link to comment Share on other sites More sharing options...
dan tonner Posted February 23, 2016 Share Posted February 23, 2016 Hi Dan,1) after the eyeball mount is clamped up the ball is clamped. It is only to get the correct angle on the control cable. 2) the outer sheath is supposed to be clamped up as well when you tighten the eyeball, but I found that it didn't (maybe tolerances on the cable sheath are nominal) so I fixed it by carefully draw filing the flats between the ball halves so it clamped up nice. 3) the only reason was its easier to put a spanner on the hex bar when tightening the locknut. With the Cromo you have to hold it with pliers or vice grips so it ends up looking a bit munted. When cutting the inner wire to length don't cut it neat to length, leave it long till you're sure. Also don't have the knob right up on the ferrule part at full throttle, always have about 1/2" -1" of s/s rod showing at full throttle so there is no strain point as the engine moves. Hope it goes well for you. Cheers Rick Thank you Rick; As you may surmise if you read the thread I started yesterday about undercarriage issues, it will be a few months before the throttle project is completed. When it is completed, I'll post some photos. Fly safely, Dan Link to comment Share on other sites More sharing options...
erd72 Posted October 23, 2017 Share Posted October 23, 2017 I have been asked to show my throttle setup so here it is.I used standard GA type throttle controls with solid wire (can push and pull) connected to the throttle torque tube crank on the firewall (drilled an extra hole). From there to the carb connection I used 1/4" CrMo tube tapped out (left hand thread one end) and spherical bearings at each end. This removes the cable problem from the equation and super easy carb balancing. Most everybody asks "What about the motor movement on startup?" You would think it affects it but I haven't experienced it, it runs extremly smooth and rarely needs adjusting for sync. One installation has over 600 hrs no probs. I also add that this was not my idea. I saw it on a web page ages ago, University of Hawaii Engineering or something. They (students) built a CH701 and didn't like the cables either, so used the rods. I've copied the idea on 3 or 4 aircraft, no probs. Use it if you like, don't if you don't. Cheers Rick [ATTACH]26656[/ATTACH] [ATTACH]26657[/ATTACH] Hi Rick, Savannah carb balance is really instable, i would like to convert like you done. Is it possible to have drawing detail or Spherical bearings reference you use ? Did you make some modification on the Throttle linkage (Diameter hole or other)? THanks in advance for your Help ! Eric Link to comment Share on other sites More sharing options...
Kyle Communications Posted October 23, 2017 Share Posted October 23, 2017 Hi Eric I regret to inform you that Rick passed away earlier this year. Ricks mods I spoke to him about and they are just normal ball links I think they were 4mm or 6mm holes in the ball links Link to comment Share on other sites More sharing options...
erd72 Posted October 23, 2017 Share Posted October 23, 2017 Hi Kyle, Really sad this to read that... I just had a look on the post concerning Rick... Thank you for the ball link description. Link to comment Share on other sites More sharing options...
