shafs64 Posted January 12, 2014 Posted January 12, 2014 just wanted to know what would be the maximan allowable weight of the front seat pilot. in a drifter
Guest Maj Millard Posted January 12, 2014 Posted January 12, 2014 Don't have the book in front of me , but from memory it's around 68-69 KGs .................Maj....
shafs64 Posted January 12, 2014 Author Posted January 12, 2014 well it would nose over as soon as I got in.
SDQDI Posted January 12, 2014 Posted January 12, 2014 Don't have the book in front of me , but from memory it's around 68-69 KGs .................Maj.... Are you talking max or minimum weight maj? I thought some drifters had a minimum weight of pilot
Guest Maj Millard Posted January 12, 2014 Posted January 12, 2014 I think the minimum is 60 something and the max is around 80 KGs, but don't have the book in front of me,so just guessing really.......I 'm about 69 Kg and I always carried a bit of weight in the front when I flew my 582 CB.....Maj
arielle Posted January 12, 2014 Posted January 12, 2014 Maj M aren't you thinking of the min weight? Let's just say I recall being told that I'd need quite a bit of ballast if I were to convert. Went looking and found a manual for a SB-582, min 65kg, max 95kg front seat, so my memory was not playing tricks.
Guest Maj Millard Posted January 12, 2014 Posted January 12, 2014 19-xxxx. These aeroplanes are amateur built with MTOW not exceeding 544kg (1200 lbs) and stall speed in the landing configuration not exceeding 45 Kts (52 Mph). Private operations only.
shafs64 Posted January 12, 2014 Author Posted January 12, 2014 flying a drifter is something I would like to do one. but I am going to have to shed some weight.
Blue Drifter Posted January 12, 2014 Posted January 12, 2014 How much do you weigh? I am no lightweight. Send me a PM and I will tell you about it.
skyfox1 Posted January 12, 2014 Posted January 12, 2014 My maximum weight is 92 kgsup front in my Drifter but saying that my friend weighs 130kgs and he flies his with no problems at that weight . cheers Geoff.

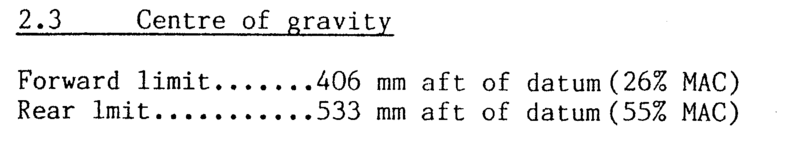

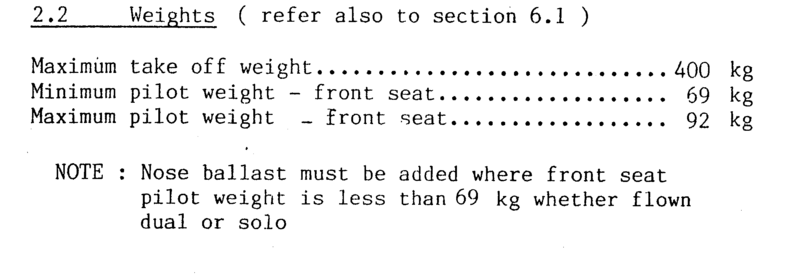

M61A1 Posted January 15, 2014 Posted January 15, 2014 Cut and paste from the SB582 book. FLIGHT CREW AND PASSENGER LIMITS Minimum flight crew One pilot Command seat Front seat Maximum permissible number of persons on board. 2 Minimum load front seat 65 kg Maximum load front seat 95 kg And from the A503- The CoG figure are not right as well, 533mm is not 55% MAC, it's around 33%. Most Drifters fly better with a bit more weight up front. Dunno what's the go with the bold, I turn it off and it comes back as soon as I type.
facthunter Posted January 15, 2014 Posted January 15, 2014 Skyfox at 130 Kgs there would have to be a big difference unless he has put weights down the rear, and I wouldn't dare to recommend it structurally. The plane is significantly altered at weights well below the figure you quote in the way it handles. It would be virtually impossible to stall and it would not be possible to 3 point it. You run out of "UP" elevator. Nev
shafs64 Posted January 15, 2014 Author Posted January 15, 2014 So if the front seat pilots weights say 125 kg. it could be way forward of the COG? what is the empty weight of a drifter. Cut and paste from the SB582 book.FLIGHT CREW AND PASSENGER LIMITS Minimum flight crew One pilot Command seat Front seat Maximum permissible number of persons on board. 2 Minimum load front seat 65 kg Maximum load front seat 95 kg And from the A503- [ATTACH=full]26880[/ATTACH] The CoG figure are not right as well, 533mm is not 55% MAC, it's around 33%. Most Drifters fly better with a bit more weight up front. Dunno what's the go with the bold, I turn it off and it comes back as soon as I type. [ATTACH=full]26881[/ATTACH]
facthunter Posted January 15, 2014 Posted January 15, 2014 There's basically two types Strut braced and wire braced. I don't have the weights. The rear seat is close to the Cof G and has no real effect except contribute to weight. The one quoted above is SB 582 , Nev
skyfox1 Posted January 15, 2014 Posted January 15, 2014 Skyfox at 130 Kgs there would have to be a big difference unless he has put weights down the rear, and I wouldn't dare to recommend it structurally. The plane is significantly altered at weights well below the figure you quote in the way it handles. It would be virtually impossible to stall and it would not be possible to 3 point it. You run out of "UP" elevator. Nev Hi Nev at the start he put diving belt weights around the boom at the rear 5 kgs ,later on he removed them and flies' with out any now has no problems as far as l no he has plenty of authority over all controls surfaces.. Shafs64 the empty weight of my Drifter is 174 kgs. cheers Geoff.
facthunter Posted January 15, 2014 Posted January 15, 2014 Yes Geoff. I have personal experience of the situation I mentioned at a lot less weight than 130 Kgs. If you keep excess speed that's ok, to a point, but you still have a stated limit on a weight related to the airworthiness of the aircraft. 95 kgs to 130 is a big percentage and you are a long way forward of the CofG. Nev 1
M61A1 Posted January 16, 2014 Posted January 16, 2014 So if the front seat pilots weights say 125 kg. it could be way forward of the COG? what is the empty weight of a drifter. According to the manuals, the empty weights vary slightly and the actual weight should be recorded in the particular aircraft's manual. I have just tried to upload both manuals (SB582 and A503), but I get a "file is too large message. The SB582 manual has a chart for weight and balance, so you could work out where you stand in regard to CoG. The empty weight of a strut braced machine is usually around the 250kg mark, from memory, mine (a wire braced) is 268kg but I have a bigger, heavier engine.
Blue Drifter Posted January 16, 2014 Posted January 16, 2014 G'day M61A1, After I did my Weight and Balance, my Drifter came in at 235kg. It has a 582 upright rotax. What engine do you have that gives the extra 33kg?
M61A1 Posted January 16, 2014 Posted January 16, 2014 G'day M61A1,After I did my Weight and Balance, my Drifter came in at 235kg. It has a 582 upright rotax. What engine do you have that gives the extra 33kg? I have an 80 hp Verner.
Patrick Normoyle Posted January 17, 2014 Posted January 17, 2014 I have an inverted 582 in a Fisher Mk 1, 186 kg, pilot min weight of 68kg and max of 122kg, weight and balance all done by Wayne Fisher, well within the limits and they are clearly marked on the airframe. I have climbed to 7500feet with no problems and have never had a problem 3 pointing or wheeling on, my aircraft slips and turns with great authority and flies hands off at 5200rpm without loosing altitude. This aircraft is a 19 reg and has 400plus flight hours. 1
Kyle Communications Posted January 18, 2014 Posted January 18, 2014 So if the front seat pilots weights say 125 kg. it could be way forward of the COG? what is the empty weight of a drifter. hahah shafs…I am that weight and am spewing. Bill has a drifter at Ycab now and I would love to get endorsed on it but too heavy :(….
M61A1 Posted January 18, 2014 Posted January 18, 2014 An acquaintance told me today of someone who flies a drifter at 135kg with any negative physical effects, I can't vouch for the legality of it though, for those who concern themselves with such things.
shafs64 Posted March 16, 2015 Author Posted March 16, 2015 I would of though the aircraft would nose over with a 130kg pilot up front and would not be stable in flight.
robinsm Posted March 16, 2015 Posted March 16, 2015 I dont know, my aircraft has has 2 x 110kg gents in it, full tank of fuel for a long cross country flight and performed fine, came in under the MTOW by about 30kg. 1 1
pmccarthy Posted March 16, 2015 Posted March 16, 2015 I was about 120kg when I flew a drifter no worries.
