RichTee Posted May 19, 2015 Share Posted May 19, 2015 Hi, Can any-one send me the diagram of the fuel schematics for the Savannah S with standard 4 tanks and the change over (open all) taps behind the pilot/pax heads. I am trying to understand the relationship between the tanks, the fuel return pipes, the feeds to the 6lt tank...and the feeds between the tanks....and how the "fuel spider" works. Having bought & not built I'm behind the curve on my knowledge here. Thanks, Rich Link to comment Share on other sites More sharing options...

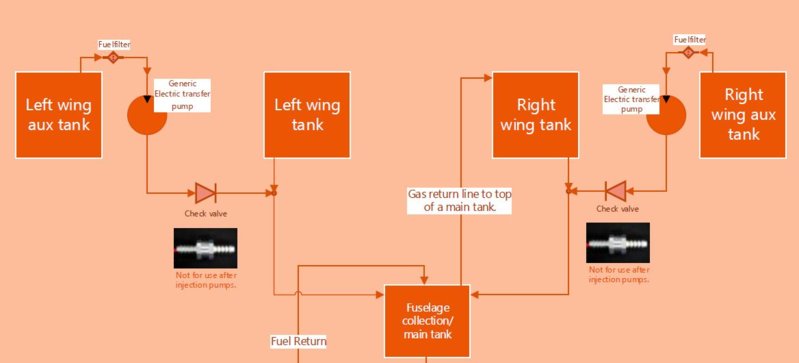

Skee Posted May 19, 2015 Share Posted May 19, 2015 This is how ICP send out their instructions to me last year and i built as it. (Ignore the fuel return into the fuselage collection tank, fuel return should connect directly to where it says gas return line) Link to comment Share on other sites More sharing options...
peteryoung Posted May 28, 2015 Share Posted May 28, 2015 Hi,Can any-one send me the diagram of the fuel schematics for the Savannah S with standard 4 tanks and the change over (open all) taps behind the pilot/pax heads. I am trying to understand the relationship between the tanks, the fuel return pipes, the feeds to the 6lt tank...and the feeds between the tanks....and how the "fuel spider" works. Having bought & not built I'm behind the curve on my knowledge here. Thanks, Rich Rich, Get in touch with Reg Brost of Aerokits. He can supply a system that is simple and basic. Does not require electric fuel pumps, check valves etc. Less to go wrong and it works a treat. Peter Link to comment Share on other sites More sharing options...
