Lyndon Posted October 3, 2015 Share Posted October 3, 2015 This has done my head in. There is an option for an extended baggage compartment. Looks like my kit does not have it. So that's fine. But that implies that there is one. But from what I can work out with out this option it does not have a baggage compartment at all. Just a flat sheet of aluminium behind you. Not having seen a plane can someone please confirm this is correct. Lyndon Link to comment Share on other sites More sharing options...
Old Koreelah Posted October 3, 2015 Share Posted October 3, 2015 Which plane r u talking about? Link to comment Share on other sites More sharing options...
Lyndon Posted October 3, 2015 Author Share Posted October 3, 2015 Sorry Savannah VG Link to comment Share on other sites More sharing options...
rankamateur Posted October 3, 2015 Share Posted October 3, 2015 The flat sheet of aluminium behind you goes up to shoulder height, then all kits have a baggage compartment back as far as the next fuselage frame. It has a sheet of aluminium in the back of the compartment and a floor. The baggage extension discards that back wall, adds flooring back to the second frame and supplies a different back wall sheet and additional framing to mount it. (Extended baggage came along early in the VGXL release so I am not sure that the factory ever did it for the original VG). Edit. both fuselages are the same rearward of the front frame in the rear fuselage so it would fit. Link to comment Share on other sites More sharing options...
Lyndon Posted October 3, 2015 Author Share Posted October 3, 2015 Great thanks with that in mind I'm sure it make sense. I have found the floor. But can't seem to find the back wall of the compartment. I will keep looking. Lyndon Link to comment Share on other sites More sharing options...
rankamateur Posted October 3, 2015 Share Posted October 3, 2015 If you don't find the back wall give Reg a ring because there is one lying against the wall in his workshop for each kit we built with extended baggage, he should be able to send you one. 1 Link to comment Share on other sites More sharing options...
Lyndon Posted October 3, 2015 Author Share Posted October 3, 2015 Thanks 1 Link to comment Share on other sites More sharing options...
rankamateur Posted October 4, 2015 Share Posted October 4, 2015 Maybe someone closer to you who has built an XL would have one anyway. Maybe Ron Hoey? Link to comment Share on other sites More sharing options...
Lyndon Posted October 4, 2015 Author Share Posted October 4, 2015 Would an xl be wider than the VG ??? Link to comment Share on other sites More sharing options...
rankamateur Posted October 4, 2015 Share Posted October 4, 2015 Would an xl be wider than the VG ??? From the back of the seats forward it becomes wider but the rear fuselage uses all the same parts. Link to comment Share on other sites More sharing options...

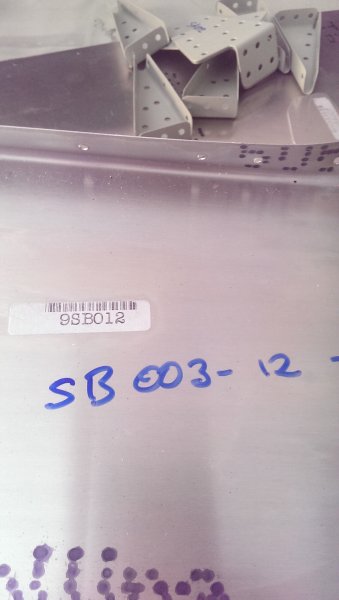

Lyndon Posted October 4, 2015 Author Share Posted October 4, 2015 Is this the back my book says sb 003-12 but ??? Link to comment Share on other sites More sharing options...

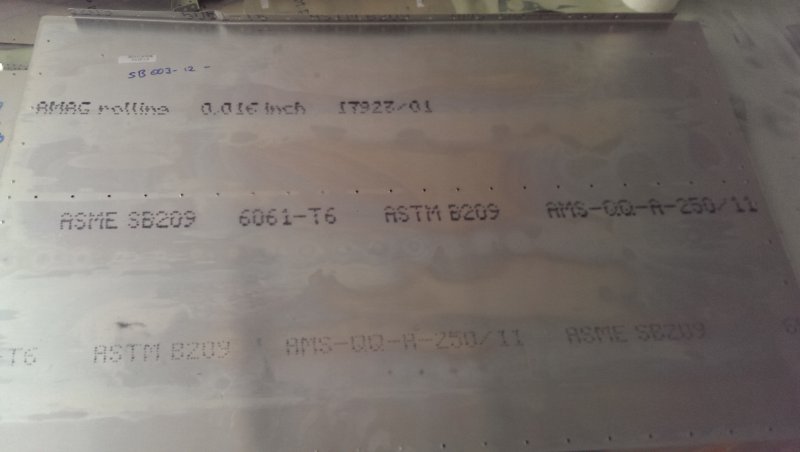

Lyndon Posted October 4, 2015 Author Share Posted October 4, 2015 Same part Link to comment Share on other sites More sharing options...
Lyndon Posted October 4, 2015 Author Share Posted October 4, 2015 I've got the floor. Link to comment Share on other sites More sharing options...
rankamateur Posted October 4, 2015 Share Posted October 4, 2015 Fit the two together and see how they line up. Mine has round shoulders because it is an S so looking in my manual won't help. the cutouts in the floor are for the cabinets that house the flap control rods so fit them in the there an se if the mounting holes line up on the back wall. Link to comment Share on other sites More sharing options...
rankamateur Posted October 4, 2015 Share Posted October 4, 2015 Are you sure that part isn't the back of the seats? Link to comment Share on other sites More sharing options...
Lyndon Posted October 4, 2015 Author Share Posted October 4, 2015 I will . At not this stage yet. Just sorting parts. As I assemble it I'm sure it will fall into place Link to comment Share on other sites More sharing options...
rankamateur Posted October 4, 2015 Share Posted October 4, 2015 It is a lot easier to assemble the baggage compartment as you build the rear fuselage. You don't want to be waiting for a part to put in later. Link to comment Share on other sites More sharing options...
Lyndon Posted October 4, 2015 Author Share Posted October 4, 2015 SF081 is the seat back. And does not have the 90 degree edge from what I can see Link to comment Share on other sites More sharing options...
rankamateur Posted October 4, 2015 Share Posted October 4, 2015 The 90 degree edge on the seat back rivets over the top of the baggage floor from memory. I am doing my BAS, not down at the house where my plane is so I can't readily check. Link to comment Share on other sites More sharing options...
Lyndon Posted October 5, 2015 Author Share Posted October 5, 2015 I have renewed conference. I'm assembly parts for priming on the front fuselage and there are two parts with part numbers on then that aren't even close. So when it comes to assembly the baggage compartment the parts will work fine. Lyndon Link to comment Share on other sites More sharing options...
eightyknots Posted November 13, 2015 Share Posted November 13, 2015 The flat sheet of aluminium behind you goes up to shoulder height, then all kits have a baggage compartment back as far as the next fuselage frame. It has a sheet of aluminium in the back of the compartment and a floor. The baggage extension discards that back wall, adds flooring back to the second frame and supplies a different back wall sheet and additional framing to mount it. (Extended baggage came along early in the VGXL release so I am not sure that the factory ever did it for the original VG). Edit. both fuselages are the same rearward of the front frame in the rear fuselage so it would fit. I wonder how much extra weight is added to the Savannah when using the extended baggage option? Does anyone know? Link to comment Share on other sites More sharing options...
rankamateur Posted November 13, 2015 Share Posted November 13, 2015 I wonder how much extra weight is added to the Savannah when using the extended baggage option? Does anyone know? It comes as a neat little add-on package but it isn't as simple as weighing the parcel contents because there are also discarded standard parts like the rear wall and flap rod covers. Find me some one who has retrofitted one that wants to go back to standard size. I think it is well worth the weight penalty if you plan on touring. Link to comment Share on other sites More sharing options...
Sam the Swiss Posted April 20, 2017 Share Posted April 20, 2017 I had the chance to attend the Friedrichshafen Aero 2017. There I could sit in the Savannah S. A cool plane, I liked it a lot. I will try one, if I find a Savannah not to far away from my place. While sitting in the plane I realized that there is nearly no space for luggage. Clearly no extended baggage compartment. Can anybody of you post a foto of the extended luggage compartment and maybe also add the dimensions of the space? I can't find anything about it on the icp site or on the sites of the dealers in Switzerland, France or Germany. Thanks a lot! Samy Link to comment Share on other sites More sharing options...
IBob Posted April 20, 2017 Share Posted April 20, 2017 It goes back one more fuselage frame, with the additional compartment floor sloping up. The weight increase would be minimal: one more section of floor and a few more rivets, with the back wall actually lighter (less high). Goes back 800mm from top of seat back to rear wall (or 700mm from top of that fuselage frame). Savannah S Build Notes - Rear Fuselage Link to comment Share on other sites More sharing options...
eightyknots Posted April 21, 2017 Share Posted April 21, 2017 It goes back one more fuselage frame, with the additional compartment floor sloping up. The weight increase would be minimal: one more section of floor and a few more rivets, with the back wall actually lighter (less high).Goes back 800mm from top of seat back to rear wall (or 700mm from top of that fuselage frame). Savannah S Build Notes - Rear Fuselage Does anyone happen to know how much space is left of the extended luggage compartment when an ICP ballistic parachute is fitted? Link to comment Share on other sites More sharing options...
