Lyndon Posted July 24, 2016 Share Posted July 24, 2016 Gday. Pitot tube. I can't find it my manual. Is it sf621. Part number. Also fitting of the hella light in its little shroud. Any pics or info on fitting both of these much appreciated. Lyndon Link to comment Share on other sites More sharing options...

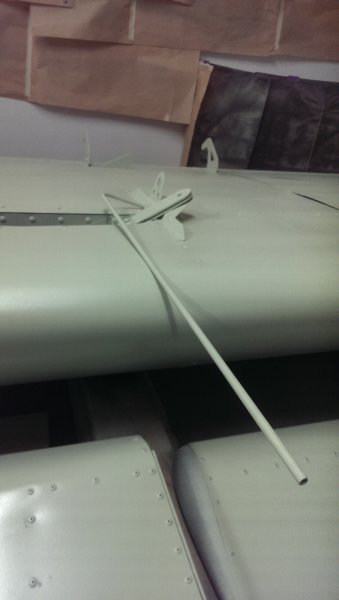

rick morawski Posted July 24, 2016 Share Posted July 24, 2016 Gday. Pitot tube. I can't find it my manual. Is it sf621. Part number. Also fitting of the hella light in its little shroud. Any pics or info on fitting both of these much appreciated.Lyndon Hi Lyndon, The pitot tube is a piece of 6mm aluminium tube L shaped, about 450mm long with one bend 90 degrees with about 75mm one end (dont ask me which end ) Not to be confused with the fuel return tube which is similar size but has 2 bends. they are usually all taped together with the 10mm fuel tubes. don't put it on permanently till final assembly at the airstrip or it will get bent for sure, actually most sav builders cut it short and then join it back up with a bit of 8 x 6 rilsan tube so it will flex when someone bashes it while not looking. The light shroud is pretty simple, rivet the teardrop shape doublers on with 2 crush rivets each, then using the self tapper screws that come with the light attach to the shroud. You have to flex the shroud around the light a bit and hold your tongue in the right position to do this. Then position the assembly on the wing in the position shown in the manual, drill through the holes, cleco as you go, deburr and rivet. cheers Rick Link to comment Share on other sites More sharing options...
Lyndon Posted July 24, 2016 Author Share Posted July 24, 2016 Thanks Rick. It's seems very long and was expecting some fancy think to be in the end to catch wind. But I guess simple is good. I will wait till the wing is on the plane but will paint it with my tongue wing . Thanks Lyndon Link to comment Share on other sites More sharing options...

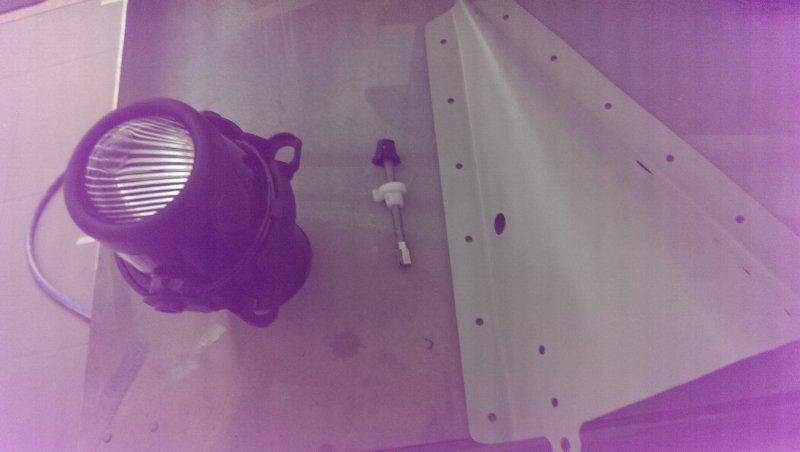

Lyndon Posted July 24, 2016 Author Share Posted July 24, 2016 The light Mmm. I have a cover that attaches to the wing. A hella light with an adjuster that seems to go no where. The manual shows nothing from what I can see . Lyndon Link to comment Share on other sites More sharing options...
Lyndon Posted July 24, 2016 Author Share Posted July 24, 2016 Sorry. Seems like auto spell is working. Sure you all get the drift Link to comment Share on other sites More sharing options...
rick morawski Posted July 24, 2016 Share Posted July 24, 2016 The light Mmm. I have a cover that attaches to the wing. A hella light with an adjuster that seems to go no where. The manual shows nothing from what I can see .Lyndon Toss the adjuster it's not used. there will be two small teardrop shaped bits of aluminium with three holes in each bit. They are doublers that reinforce the mounting holes that bulges out the front of the shroud. in the box that the light was in should be two he head self tapping screws. Put on screw in the mounting hole and with the light inside the shroud turn the screw into one of the mounting holes on the side of the light (use lubricant and reverse it often or you will break a screw). Then flex the shroud around the light body and place the other screw in. Link to comment Share on other sites More sharing options...
Lyndon Posted July 24, 2016 Author Share Posted July 24, 2016 Thanks so much. Off to find the two tear drop reinforcing plates. Thanks Lyndon Link to comment Share on other sites More sharing options...

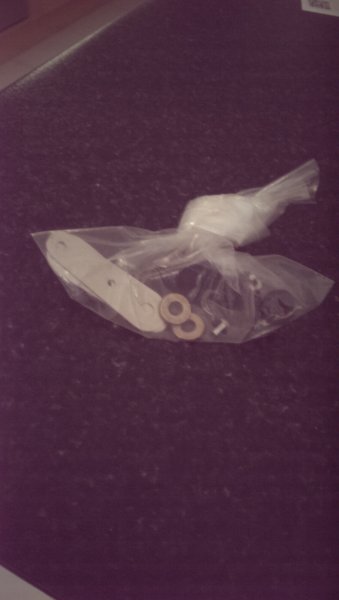

Lyndon Posted July 24, 2016 Author Share Posted July 24, 2016 Found. With no part number. Not in my parts book and the manual just shows a pic of the light and where to place it. I would never have even guessed where this goes. Thanks again Link to comment Share on other sites More sharing options...
IBob Posted July 24, 2016 Share Posted July 24, 2016 You're lucky, Lyndon: what you get now is something looks like an old dichroic downlight bulb, and a thin bit of mylar sheet....( Link to comment Share on other sites More sharing options...
Lyndon Posted July 24, 2016 Author Share Posted July 24, 2016 I'm still debating wether to fit or not. But while I'm painting I may well do it. Link to comment Share on other sites More sharing options...
IBob Posted July 24, 2016 Share Posted July 24, 2016 Might one day prevent someone/something wandering across the strip when you're on late finals??? Link to comment Share on other sites More sharing options...
Lyndon Posted July 24, 2016 Author Share Posted July 24, 2016 Yes it may. Link to comment Share on other sites More sharing options...
