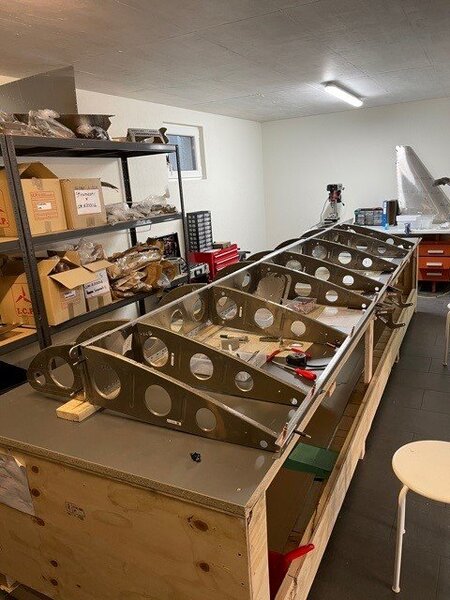

Luca Milesi Posted April 20, 2021 Share Posted April 20, 2021 Hello to everyone, I need đ your invaluable help again I m building my  Savannah right wing but unfortunately the instructions that ICP provided to me (see pictures)  are for the european model with single tanks while  my model has the double tanks. I think that the angulars should not been placed at the same location. Or perhaps am I wrong? Does anyone have the right instructions for the model with double tanks? That would very helpful to me. Thnak you in advance and blue skies Luca  1 Link to comment Share on other sites More sharing options...
Luca Milesi Posted April 20, 2021 Author Share Posted April 20, 2021 An inexperienced pharmacist at workđ 1 Link to comment Share on other sites More sharing options...
IBob Posted April 20, 2021 Share Posted April 20, 2021 Luca, you are correct: the angulars as they call them (which stiffen the skin) are not used in the fuel tank bays, as the fuel tanks must press tight against the top skins. Â (FWIW, some builders use those spare angulars at the outboard skin join in the horizontal stabiliser.) Â Â 1 Link to comment Share on other sites More sharing options...
IBob Posted April 20, 2021 Share Posted April 20, 2021 Have you built your horizontal stabiliser? Link to comment Share on other sites More sharing options...
Luca Milesi Posted April 21, 2021 Author Share Posted April 21, 2021 Not yet. I started with chapter 1 in the instruction: right wing. Link to comment Share on other sites More sharing options...
APenNameAndThatA Posted April 21, 2021 Share Posted April 21, 2021 Beautiful looking bench and workspace. 1 Link to comment Share on other sites More sharing options...
IBob Posted April 21, 2021 Share Posted April 21, 2021 Okay. When you get to the horizontal stabiliser, you will find that the front longeron does not go all the way across. So the join between the front skin and the top and bottom skins is not supported all the way to the outer tips. It is a very simple matter to use the 'angulars' that you did not use where your extra fuel tanks are to support the join in the outer stabiliser skins: the hole spacing is identical. Â I missed this initially in my own build, but found the skins to be very 'soft' with lack of support, so opened my stabiliser and added the angulars. It was a big improvement and I think many builders do this. 1 Link to comment Share on other sites More sharing options...
Luca Milesi Posted April 21, 2021 Author Share Posted April 21, 2021 IBob, thank you very much for your support. đđWithout your advices I would have made some mistakes. I appreciate very muchđ Link to comment Share on other sites More sharing options...
Kyle Communications Posted April 22, 2021 Share Posted April 22, 2021  Luca ... If you go to this page 17 on my rebuild blog you do what I did on the outer tank sections. I changed my tanks but the process is still the same  Have a read through this blog if you havent already this may give you some insights into the construction. I have made mods though to what I want in mine.  My previous blog building a new XL is also on here if you ahvent read it..it is the first one I built some 9 years ago and it will show you some tips as well On page 4 you will see I did the same thing  1 Link to comment Share on other sites More sharing options...

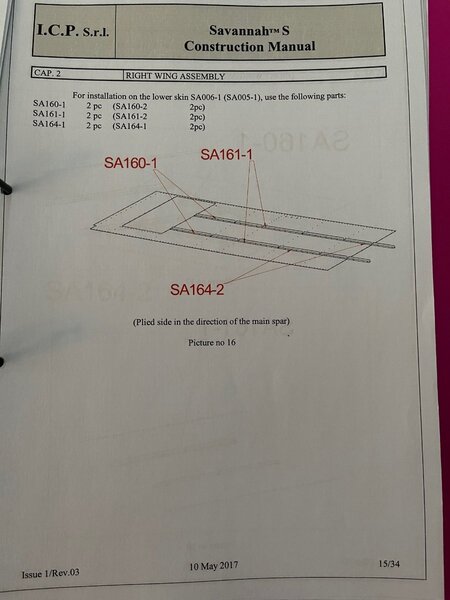

AndyDrain Posted April 22, 2021 Share Posted April 22, 2021 Luca On page 15/34 where components SA160-1 are located there should be a large hole for the outer tank. The illustration has one but for the two tank version there should be two.  So there is actually nowhere to place these. My recollections are fading but I think the other angulars go as per instruction. Link to comment Share on other sites More sharing options...
Luca Milesi Posted April 23, 2021 Author Share Posted April 23, 2021 Thank you very much! Blue skies, Luca Link to comment Share on other sites More sharing options...
eightyknots Posted April 24, 2021 Share Posted April 24, 2021 This is all very useful informationâ 1 Link to comment Share on other sites More sharing options...
