I am looking for some advice regarding the fitment of a powermate regulator to the Jabiru Gen 4 engine.



I have the latest version of the Kubota Reg fitted which does not utilise a sense wire and the red output of the reg is connected directly to the Battery. (via a relay)

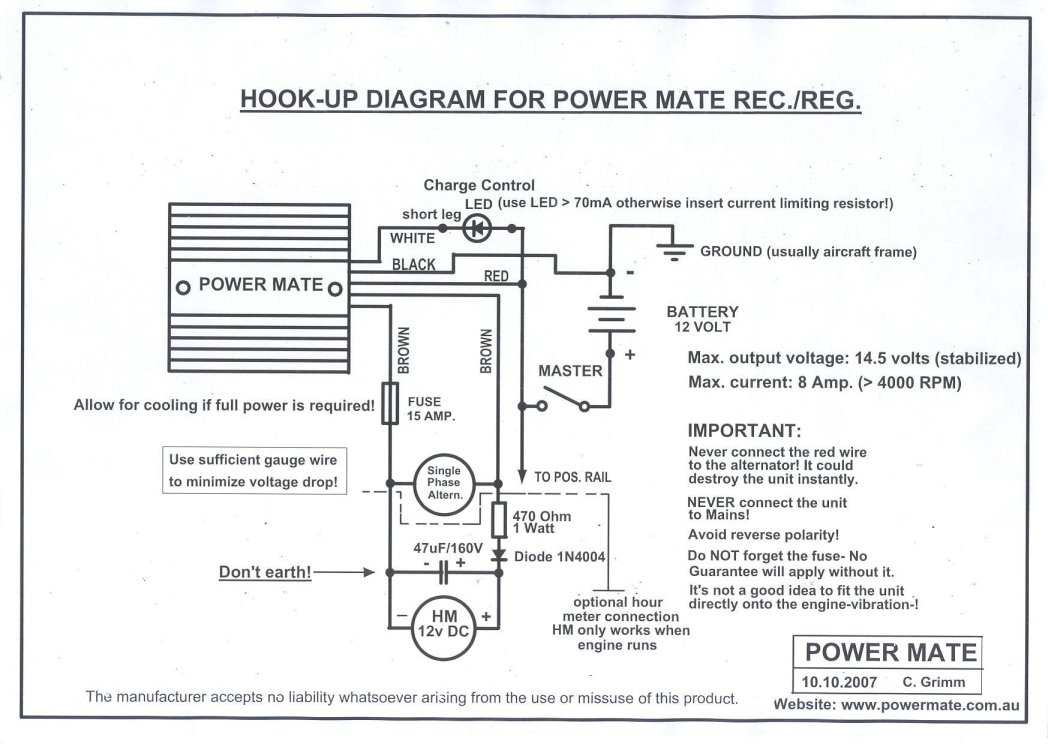

The wiring diagram for the Powermate Reg (attached) shows the output wire attached to the main bus, therefore not a direct connection to the battery.



1. Will a direct connection to the battery be a problem with any parasitic draw from the Powermate regulator when not running?



2. The wiring diagram shows an LED of greater than 70mA required, or a current limiting resistor, what size resistor would be needed for a 20nA led?



Mike





[RFguy]

A Red 1.8V LED  will typically have a maximum continuous current of 30mA. for a 12V system, and IF 12V gets switched across it, for 20mA (recommended)  this will need a resistor of  (12-1.8) / 0.02
510 ohms. Use a 470 ohm or 680 ohm.



I dont know about the parasitic draw.

Note the diagram shows the charger connected  via the master switch.

Edited June 22, 2021 by RFguy

[Tasmag]

Thanks Glen,



Yes the diagram showing the connection via main bus had me worried there was a reason that was not immediately obvious. The relay I have fitted is wired so that it will disconnect charging when madter is off, so would do pretty much the same thing, unless I am missing something.
