Hats off to the pilots who flew the tests with the Northrop HL_10.
I'll stick with something that actually has wings...........

  • Like 1
Posted

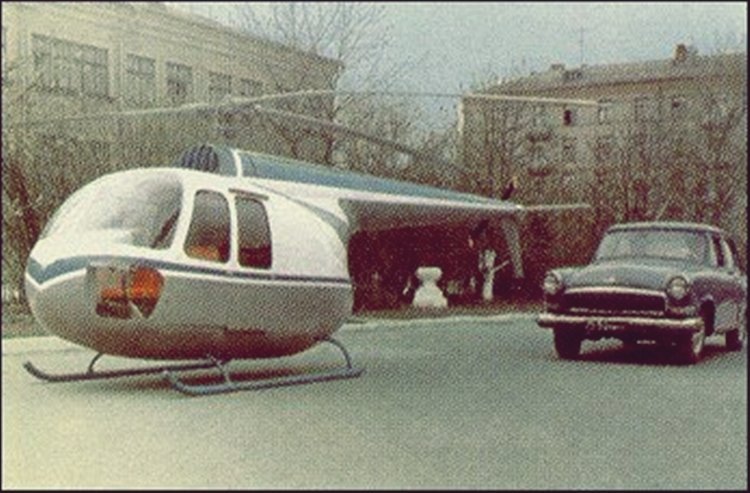

The Mil Mi-20 was a small, multipurpose helicopter developed in the mid-1960s to replace the Mil Mi-1. It was designed for transport, cargo, agricultural, training, and light combat roles. Equipped with Falanga or Malyutka missiles or UB-16-57 rocket pods in its gunship configuration, the Mi-20 failed to gain traction and was cancelled after the second prototype.




  • Like 1
Posted

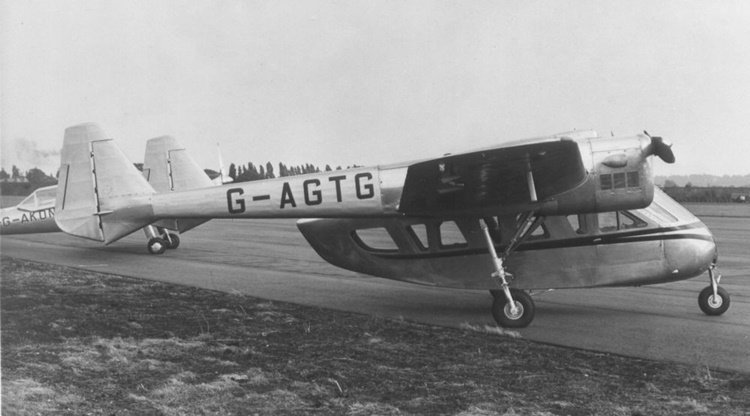

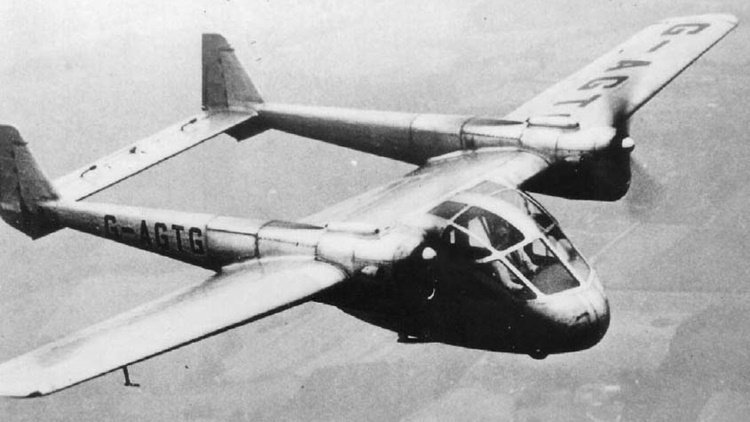

The Portsmouth Aerocar was a British light utility aircraft design of the late 1940s. It was intended to be an aircraft that could be used for a variety of tasks including transport "mobile office" but only one prototype was built being scrapped in 1950.



The Aerocar was a high-wing monoplane with gondola fuselage and twin-boom tailplane and tricycle undercarriage. The cabin could hold five passengers in addition to the pilot. Four doors were fitted to the cabin. The manufacturer claimed that as well as taking off in 160 yards on (dry) grass, it could climb on one engine at full load at 230 ft/min (70 m/min).



It was of composite construction; fabric-covered wooden wings, tail booms and tail fitted to a metal fuselage but the production model would have been all-metal. Clamshell doors at the rear of the fuselage were advertised.



Construction of both a Major and Minor variants was started but the company decided that the Minor would not have enough power and construction was abandoned. The Major prototype was completed and started taxying trials at Portsmouth on 18 June 1947, Frank Luxmoore was pleased with the trials so he undertook the maiden flight the same day.



It was exhibited at the Society of British Aircraft Constructors airshow but funding for the development of the Aerocar was dependent on an agreement for licence manufacture in India. With the uncertainty arising from the partition of India in 1947, this became unlikely and Portsmouth Aviation was unable to continue with development. With Lionel Balfour, the driving force behind the Aerocar, no longer part of the company the Aerocar was stored until scrapped.



PortsmouthAerocar1.thumb.jpg.09fbf5b579c3ed960d2f6d0489cd375a.jpgPortsmouthAerocar2.thumb.jpg.235309d369fea9a12dfbfe01b44971fe.jpg

Posted

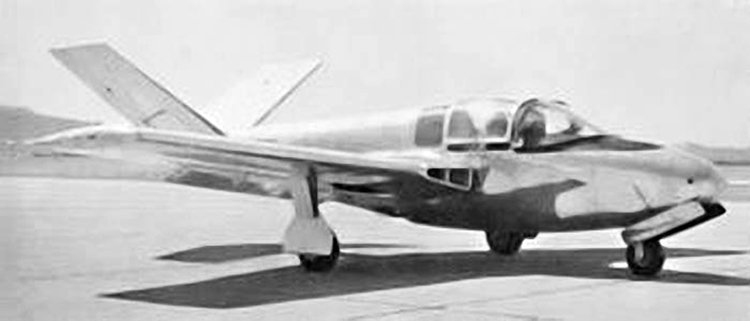

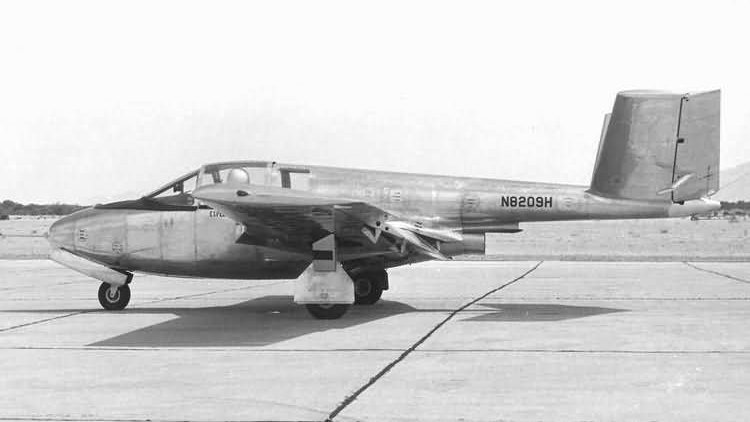

The Dale Weejet 800, or Weejet VT-1 was an early light jet intended for high-speed personal transport or primary military training.



Harold Dale, an engineer at North American Aviation who had designed several homebuilt aircraft, teamed up with Edward Gagnier, a former North American engineer, to develop the Weejet. The name was registered in February 1952 and the prototype was built in 2 1/2 years.



The Weejet was a two-seat side-by-side, mid-winged all-aluminum, retractable tricycle gear aircraft with a V-tail arrangement. The aircraft was powered by a 920lb thrust Continental-Turbomeca Marbore II J-69-T-15 engine. Air was fed to the engine through two triangular inlets mounted on the inboard wing roots. Fuel was carried in the leading edge of the wings, and tip tanks. The aircraft had oxygen tanks and was pressurized to 3 psi differential pressure. The seats were designed to accommodate parachutes. The rudder pedals were adjustable for different pilot heights.



The first test flight was conducted by Harold Dale on 30 March 1956. The aircraft completed several spin tests, but during one test the canopy opened and the aircraft went into an inverted spin. The pilot bailed out safely and the prototype crashed after performing an unmanned inverted loop. It was later found that the trim tab was set to full nose-down attitude during the test. A scheduled demonstration of the aircraft for the U.S. Navy was canceled. No other Weejets were produced.



DaleWeejet80002.thumb.jpg.38922e86385998d4390c92a7c00c3b1b.jpgDaleWeejet80001.thumb.jpg.d921fbc3e98f765c3acf6effe1ee2c65.jpg

Posted

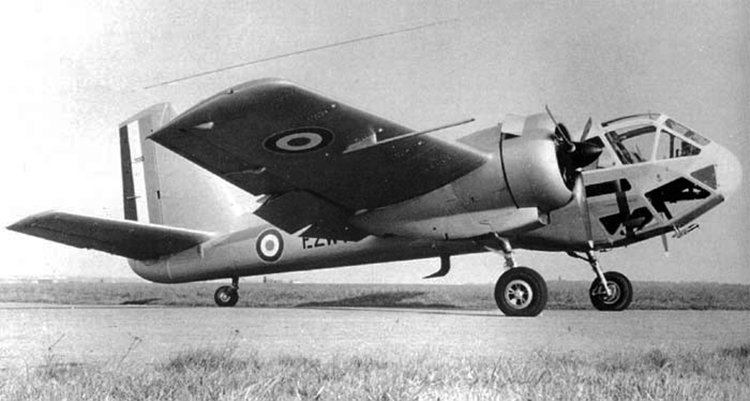

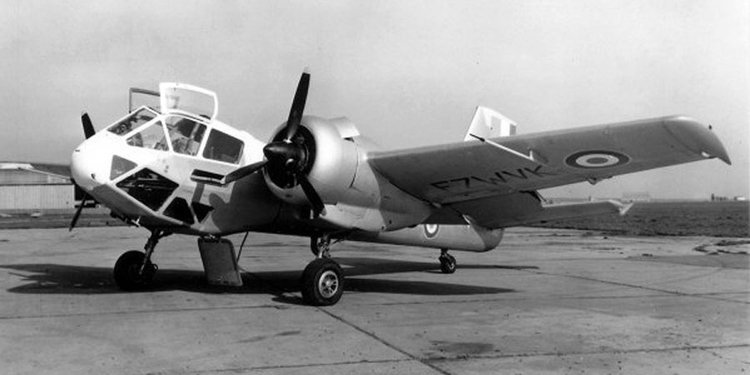

The SIPA S.1100 was a French twin engine observation and ground support aircraft flown in 1958. The first prototype was destroyed in a fatal crash only a few weeks after its first flight and no more were constructed.



In 1958 France was in the middle of the Algerian War and felt a need for a counter-insurgency aircraft capable of observation, photography and ground support. This official programme led to three aircraft: the SIPA S.1100, the Sud Aviation SE.116 Voltigeur and, slightly later the Dassault Spirale. All three were propeller driven designs with twin engines, though the SIPA was the only one never fitted with turboprops.



The SIPA SE.1100 was a mid wing cantilever monoplane. All its flying surfaces were straight tapered and square tipped; the wing carried flaps. Its 455 kW (610 hp) Pratt & Whitney R-1340 Wasp nine cylinder radial engines were mounted ahead of the wing leading edges, with cowlings which extended rearwards, both above and below the wing, nearly to the trailing edge. Its main wheels retracted backwards into the lower cowling and the tail wheel also retracted.



Its crew compartment was in the extreme nose of a deepened forward fuselage, with multiple transparencies to provide good sideways and downward vision. For ground support work it was fitted with two 20 mm (0.79 in) guns. There were underwing attachment points for other armament packages.



Ten SE.1100 prototypes were ordered but then cancelled before the SE.1100's first flight, flown on 24 April 1958 by Pierre Ponthus. Less than three months later, Ponthus and his colleague André Bouthonnet were killed and the aircraft destroyed when it crashed at Villacoublay during a low level demonstration. The unfinished second prototype was then abandoned.



SipaS-110001.thumb.jpg.5220eec3aac75b258f1409691316eac2.jpgSipaS-110002.thumb.jpg.8b5a91c51bf57cb1c5d95b9db72568fc.jpg

  • Like 1
Posted

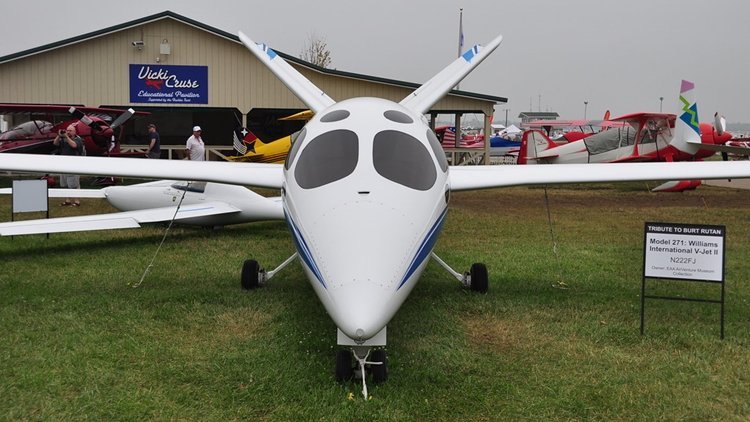

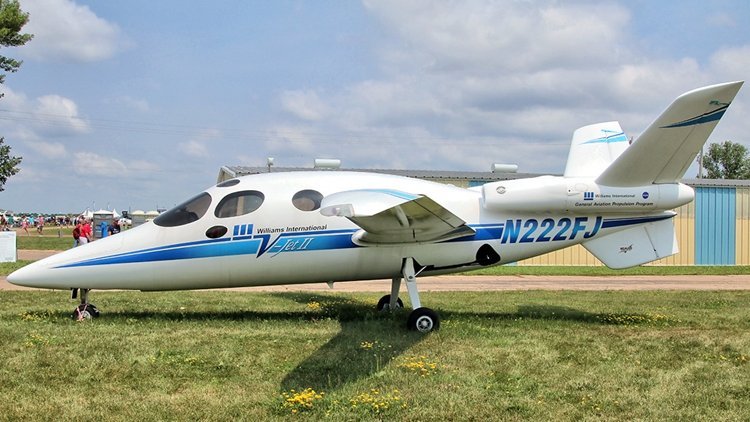

The Williams V-Jet II was designed and built by Burt Rutan's Scaled Composites for Williams International as a test bed and demonstrator aircraft for Williams' new FJX-1 turbofan engine.



Williams International had been building small turbofan engines for cruise missile applications since the 1950s, and had successfully entered the general aviation market in the late 1980s with the FJ44 engine. In 1992, NASA initiated a program, Advanced General Aviation Transport Experiments (AGATE) to partner with manufacturers and help develop technologies that would revitalize the sagging general aviation industry. In 1996, Williams joined AGATE's General Aviation Propulsion (GAP) program to develop a fuel-efficient turbofan engine that would be even smaller than the FJ44. The result was the FJX-2 engine, which produced 550 lbf (2,400 N) thrust.



Williams then contracted with Burt Rutan's Scaled Composites to design and build the V-Jet II, considered a Very Light Jet (VLJ), to use as a testbed and technology demonstrator to showcase the new engine.[2] At Scaled, the aircraft was known as the Model 271. The aircraft and engine were debuted at the 1997 Oshkosh Airshow. Scaled's test pilot Doug Shane received the Iven C. Kincheloe Award from the Society of Experimental Test Pilots for his flight test work on the plane.



The V-Jet II was an all-composite structure with a forward-swept wing, a V-tail, each fin of which was mounted on the nacelle of one of the two engines. The overall design was quite reminiscent of the LearAvia Lear Fan, although much smaller.



Williams had not intended to produce the aircraft, but it attracted a lot of attention, and Eclipse Aviation was founded in 1998 to further develop and produce the aircraft. The airframe was significantly redesigned as an all-metal structure sporting a T-tail, and the name Eclipse 500. The prototype flew with a pair of EJ-22 engines, a variant of the FJX-2. However, performance was not satisfactory, and the design was changed to use two Pratt & Whitney Canada PW610F engines, which had been specifically designed by Pratt for the Eclipse.



The prototype and only V-Jet II aircraft was obtained by Eclipse Aviation along with the program, and was donated to the Experimental Aircraft Association AirVenture museum in Oshkosh, Wisconsin in 2001.





Scaled Composites Model 271 02.jpg

Scaled Composites Model 271 03.jpg

Posted

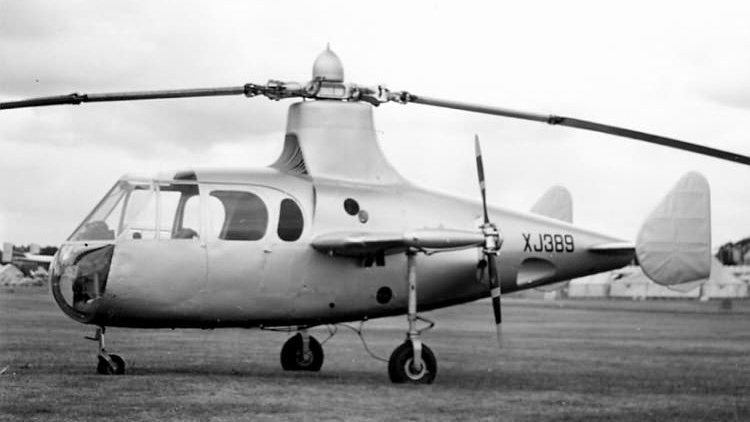

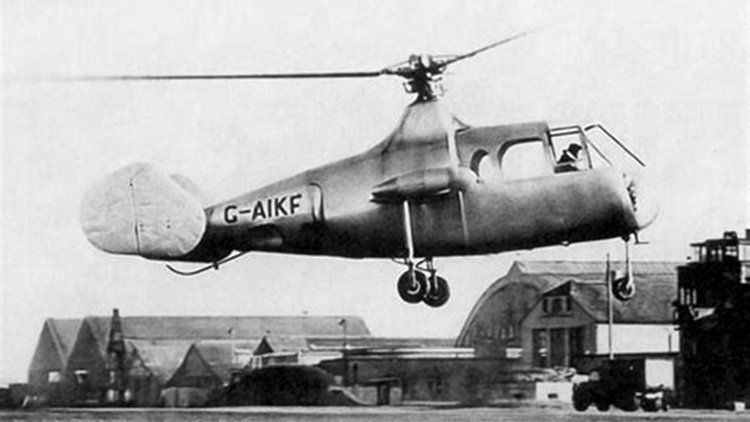

The Fairey FB-1 Gyrodyne is an experimental British rotorcraft that used single lifting rotor and a tractor propeller mounted on the tip of the starboard stub wing to provide both propulsion and anti-torque reaction.



In April 1946, Fairey announced a private-venture project for a rotary-wing aircraft, to be built to a design developed by Dr. J.A.J. Bennett while he was chief technical officer at the Cierva Autogiro Company in 1936–1939. The Gyrodyne, constituting a third distinct type of rotorcraft and designated C.41 by the Cierva Autogiro Company, was in 1938 successfully tendered to the Royal Navy in response to Specification S.22/38 for a naval helicopter. Though preliminary work started on the project, it was abandoned with the outbreak of the Second World War, and G & J Weir, Ltd., the financiers of the Cierva Autogiro Company, declined to undertake further development in addition to their successful experiments with the W.5 and W.6 lateral twin-rotor helicopters. After the Second World War, the Cierva Autogiro Company was engaged with the development of the Cierva W.9 "Drainpipe" and the W.11 Air Horse helicopters under the direction of Cyril Pullin, and Bennett joined Fairey in late 1945 as head of the newly established rotary wing aircraft division.



The Gyrodyne was a compact, streamlined rotorcraft weighing just over 4,410 lb (2,000 kg) and powered by a 520–540 hp (390–400 kW) Alvis Leonides 522/2 radial engine, the power from which could be transmitted in variable ratios to the fixed-shaft/swashplate-actuated tilting hub-controlled rotor and the wing tip mounted propeller. The Gyrodyne possessed the hovering capability of a helicopter, while its propeller provided the necessary thrust for forward flight to enable its rotor, driven at low torque in cruise flight, to operate at low collective pitch with the tip-path plane parallel to the flight path to minimise vibration at high airspeed. Collective pitch was an automatic function of throttle setting and power loading of the propeller, which to maintain rpm diverted torque away from the rotor as airspeed increased.



A government contract to Specification E.4/46 was awarded for two prototypes with the first Fairey Gyrodyne exhibited as an almost complete airframe at White Waltham on 7 December 1946.



On 4 December 1947, the first of the two prototypes took off from White Waltham airfield, and continued to build up flying time until March 1948 when it was dismantled for a thorough examination. The second prototype, basically similar to the first but with more comfortable interior furnishings befitting its role as a passenger demonstrator, was flying by the time of the next SBAC Farnborough Airshow, in September 1948. The first prototype was reassembled and, following further test flying, took part in an attempt to set a new world helicopter speed record in a straight line.



On 28 June 1948, flown by test pilot Basil Arkell, the Gyrodyne made two flights in each direction over a low-altitude 2-mile-long (3.2 km) course at White Waltham, achieving 124 mph (200 km/h), enough to secure the record. A maximum airspeed of 133 mph (214 km/h) was achieved during the flight, keeping seven inches of boost in reserve in the event a rapid climb became necessary as the flight was conducted at an altitude of less than 100 ft (30 m) above the ground. An attempt was to be made in April 1949 to set a 62 mi (100 km) closed-circuit record, but two days before the date selected a poorly machined flapping link in the rotor hub failed during flight and resulted in the crash of the aircraft at Ufton, near Reading, killing the pilot, Foster H. Dixon and observer, Derek Garraway.



The second Gyrodyne was grounded during the accident investigation which determined flapping hinge retaining nut failure due to poor machining as the cause. The extensively modified second prototype, renamed Jet Gyrodyne, flew in January 1954. Though retaining the name "Gyrodyne", the Jet Gyrodyne was a compound gyroplane, and did not operate on the same principle as the original aircraft. It had a two-blade rotor manually controlled with cyclic and collective pitch mechanisms that acted directly on each rotor blade and was driven by tip jets fed with air from two compressors driven by the Alvis Leonides radial engine. Pusher propellers, one mounted at the tip of each stub wing, provided yaw control through differential collective pitch and thrust for forward flight. The Jet Gyrodyne was constructed to provide rotor drive and operational data for the Fairey Rotodyne compound gyroplane.



Gyrodyne




Jet Gyrodyne


Posted

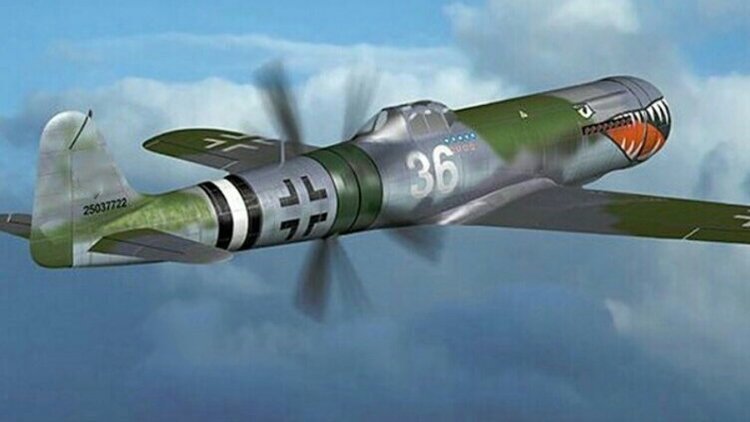

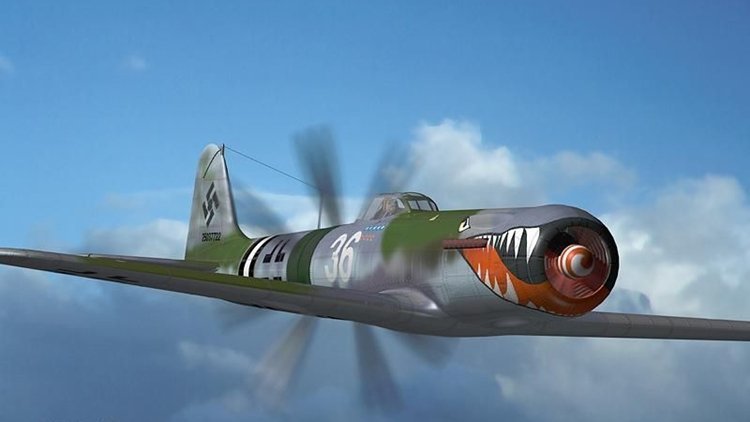

This Daimler Benz aircraft project was basically designed around an engine that was being developed at that time. The Daimler Benz Jäger (not its official name) was of a conventional layout with the exception of the propellers location. The engine was mounted in the fuselage nose, with an annular radiator in front. The wings were unswept and exhibited no dihedral and were mounted below the fuselage. The tail was of a conventional design, with its single fin and rudder.   Because of the propellers arrangement, a tricycle landing gear had to be used. A single pilot sat in the cockpit that was located towards the rear, just ahead of the contrarotating propellers. Where the Daimler Benz Jäger differed from most aircraft was its unusual propeller placement. The Daimler Benz DB 609 development began in September 1942, and it was to be an in-line, 16 cylinder injection-type aircraft engine. It was to develop 2700 horsepower, although this could be increased in later version to 3400 horsepower. Allowance was made for fitting a four-stage supercharger, and with its inverted V design, the DB 609 would have been ideal for a large caliber cannon installation, such as the MK 103, MK 108 or MK 212 cannons. Although a mockup of the forward fuselage was built (as far back as the propeller location), and because of this engine's long development time (actual delivery wasn't schduled to begin until April 1947), the RLM cancelled its development in May 1943. And, along with the DB 609 cancellation, so went the Daimler Benz Jäger project.



Daimler-BenzDB609Jger02.thumb.jpg.d69c6f44ea5204701efe0c7e0c498f51.jpgDaimler-BenzDB609Jger01.thumb.jpg.62f1a229805313c909ef32c901052d26.jpg

  • Like 1
Posted

Red750, I imagine you are familiar with the site below but just in case and as a heads up for anyone else that is interested in WW2 Era German aircraft projects most of which never flew..



http://www.luft46.com/

Posted

Very odd!



Small technical point -The engine can not have been ".... an in-line, 16 cylinder injection-type aircraft engine..." and an ".......inverted V design...." . I think the latter far more likly than the former😈



Posted
12 hours ago, Red said:

Thanks Red. I will check it out.



7 hours ago, skippydiesel said:

Small technical point -

Copy and paste from the reference page.

Posted

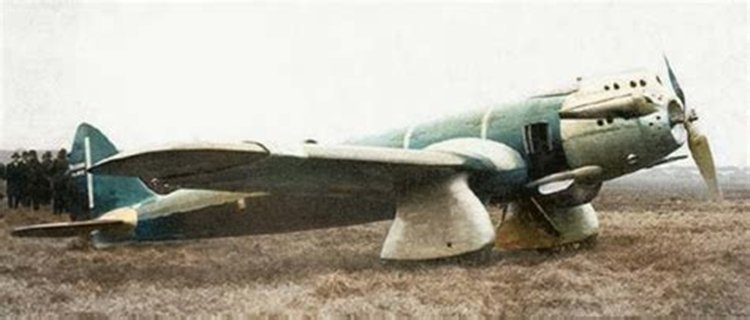

The Makhonine Mak-10, was a variable-geometry research aircraft, built to investigate variable area / telescopic wings during 1931 in France.



In the early 1930s several designers became interested in the possibility of changing the configuration of wings between take off and fast flight. Two routes were explored, the first primarily involving camber and hence lift coefficient reduction and the other a decrease of wing area by span reduction at high speed. The Schmeidler variable wing and that of the Gloster built Antoni-Breda Ba.15[3] were examples of the first group and the Makhonine Mak-10 of the second.


Details of the Mak-10 are sparse but its novel feature was a telescopic wing which increased the span for take-off by 8 m (26 ft 3 in) or 60% of its high speed configuration. The outer panels retracted into the central ones, their inner ends supported on bearings rolling along one or more spars. The ends of the centre section were reinforced with cuffs. The wing apart, it was a conventional cantilever low wing monoplane, with twin open cockpits, the rear one sometimes faired in, and faired, fixed landing gear. It was powered by a 480 kW (644 hp), three bank, W-configuration, twelve cylinder Lorraine 12Eb engine.



The first flight of the Mak-10 was on 11 August 1931. During four years of development the Mak-10 was re-engined with a 600 kW (800 hp) Gnome-Rhône 14K Mistral Major fourteen cylinder, two row radial engine which gave it a top speed of 380 km/h (240 mph) and the new designation Mak-101.



44 years later, the Akaflieg Stuttgart FS-29 experimental high performance sailplane also used telescopic wings to optimise both low speed thermalling and high speed penetration performance without the added induced drag of camber and area changing flaps.



MakhonineMak-10.thumb.jpg.9c809a408f7fbff31858b599682382a0.jpgMakhonineMak-1001.thumb.jpg.fea0bc2bbc3dfc68d9c17f4091cab9cd.jpg

  • Like 1
Posted

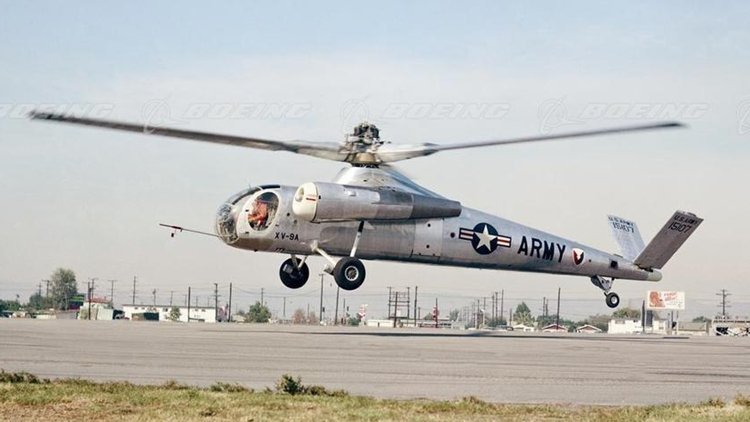

The Hughes XV-9 (company designation Hughes Model 385) was a 1960s American high-speed research helicopter built by Hughes Helicopters.



The Model 385 was designed and built under a United States Army research contract to prove a concept known as hot-cycle propulsion. The helicopter was given the military designation XV-9A with the serial number 64-15107. Two General Electric YT64-GE-6 turbojets were used as gas generators, the jet efflux was ducted to nozzles at the blade tips. The rotor blades also had cooling ducts in both the leading and trailing edges. To keep costs to a minimum the cockpit with two side-by-side seats of an OH-6A was used and the landing gear was from a Sikorsky H-34.



The helicopter first flew on November 5, 1964. After test flight at Hughes facility at Culver City, California, the XV-9A was transferred to Edwards Air Force Base for further tests. The tests were satisfactory and the company was confident that the hot-cycle system would be widely used, although the XV-9A was noisy and had a high fuel consumption. The company was unable to mitigate the problems and the development by Hughes of pressure-jet systems did not proceed. The Army tests were completed in August 1965 and the helicopter was returned to Hughes.



HughesVJ-9A01.thumb.jpg.217e18a8724d43c4978a3cbfa8eececf.jpgHughesVJ-9A02.jpg.d24878d8515c692439fa2d9893135b42.jpg

  • 4 weeks later...
Posted

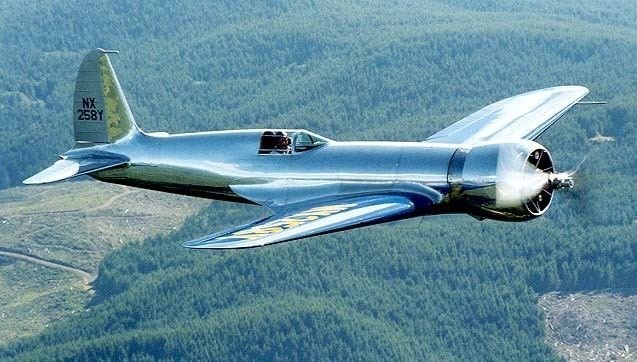

The Hughes H-1 Racer is a racing aircraft built by Hughes Aircraft in 1935. Using different wings, it set both a world airspeed record and a transcontinental speed record across the United States. The H-1 Racer was the last aircraft built by a private individual to set the world speed record; most aircraft to hold the record since have been military designs.



Streamlining was a paramount design criterion, resulting in what has been retroactively described as "one of the cleanest and most elegant aircraft designs ever built." Many groundbreaking technologies were developed during construction, including individually machined flush rivets that left the aluminium skin of the aircraft extremely smooth. The H-1 had retractable main landing gear and a fully retractable hydraulically actuated tail skid to reduce the drag of a conventional wheel and maximize speed. It was fitted with a Pratt & Whitney R-1535 twin-row 14-cylinder radial engine of 1,535 cubic inches (25.15 L), originally rated at 700 horsepower (522 kW) but tuned to produce over 1,000 horsepower (750 kW). To contest both maximum speed and long-distance racing records the original short-span high-speed wings were replaced with a set of longer ones for long-distance flights.




  • Like 3
  • Informative 1
  • 2 weeks later...
Posted

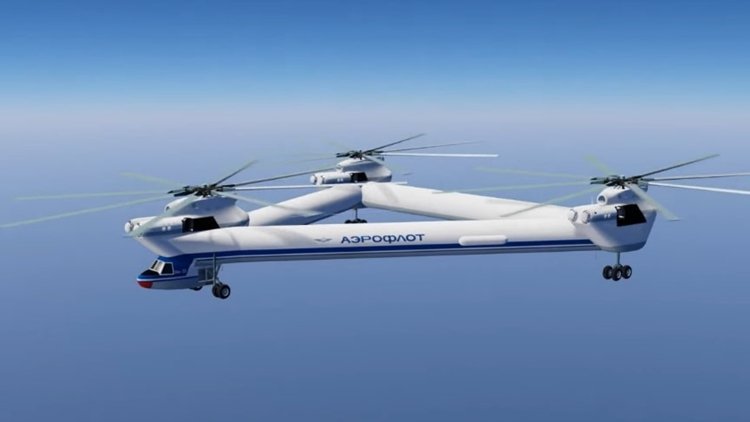

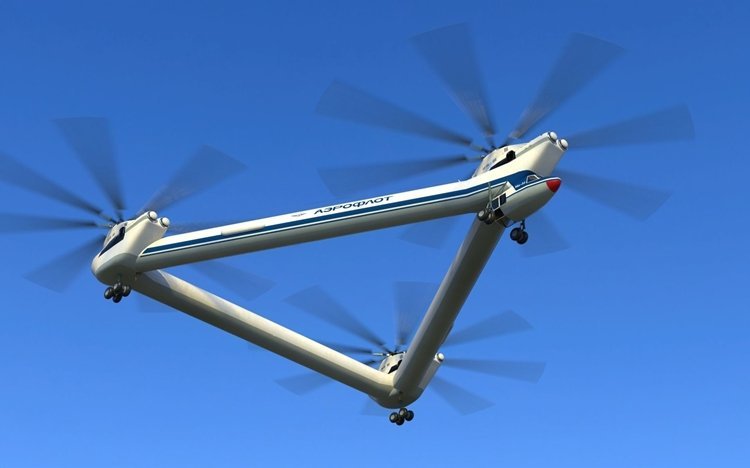

The Mil Mi-32 was a project for a super-heavy crane helicopter from 1982.A project of the heavy flying crane helicopter with a take-off weight of 140 tons intended for transporting civil and military technics. But due to the break-up of the USSR, was never built beyond prototype..






mil-mi-32-heavy-helicopter-3d-model-max-obj-fbx-c4d-blend-bip-2822662353.thumb.jpg.0c15b7e186768e30ba700d1b07ba0838.jpg

  • Like 1
Posted

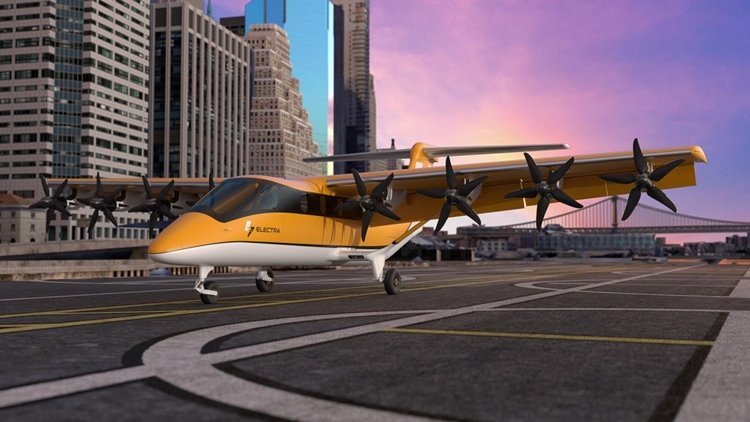

Electra unveiled its plans for a nine-passenger EL9 ultra-short takeoff and landing (STOL) hybrid aircraft that will rely on distributed electric propulsion and blown-wing technology to take off with as little as 150 feet of runway. Calling the EL9 “just an airplane,” Electra CEO Marc Allen told a gathering at the company’s facilities on November 13 in Manassas, Virginia, that the reveal marks the launch of a “real product” rather than a vision. “It's not a prototype. It's not a concept. This is a product; it's a real-world, world-changing product,” said the former senior Boeing executive.



Targeted to reach market in 2029, the EL9 is designed to foster the concept of what Electra calls direct aviation—the ability to fly point-to-point directly to where a passenger wants, whether a parking lot, heliport, grass field, or small regional airport or other traditional airport infrastructure. “Ultra short” refers to the vehicle’s ability to operate into and out of a soccer field-sized space. Electra aims to bring an affordable aircraft to market that addresses issues surrounding access, noise, and emissions, Allen added.



The ambition is to provide the EL9 with eVTOL or helicopter capabilities for flexibility in takeoff and landing but with a 1,100-nm range with IFR reserves and a 175-knot cruise speed found with more traditional aircraft. “It unlocks this elixir, which is helicopter-like performance at safety and lower cost levels of a fixed-wing aircraft,” Allen maintained.



To be offered in cargo or passenger configuration, the EL9 will be able to carry nine passengers with baggage—or 3,000 pounds of cargo—for 330 nm. The fly-by-wire aircraft is designed with two pilots in mind but is equipped with what Electra calls its Safe Single Pilot technology for single-pilot operations.




  • 2 weeks later...
Posted

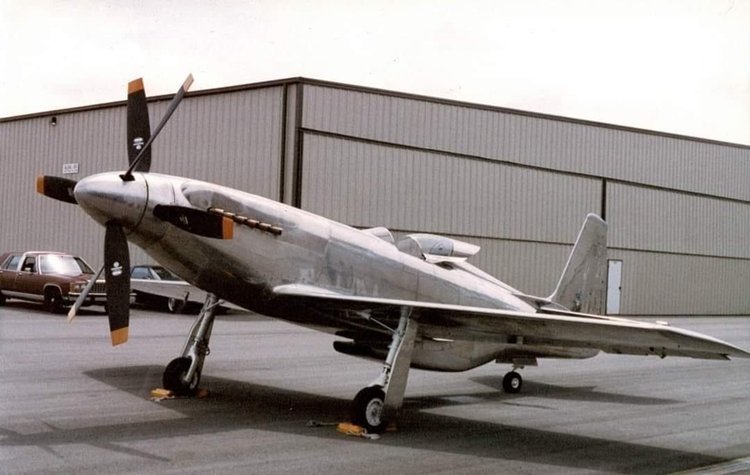

The LearStang Lowdown is an air racer which looks like a P51D Mustang, but is a completely new aircraft, using components from a number of aircraft, such at the wings and horizontal stabilizer of a Learjet and undercarriage of a Cessna 420 strengthened by components of a Piper Cheyenne and tyres from a Grumman Gulfstream nose gear.



For further details, click here.




  • Like 2
Posted

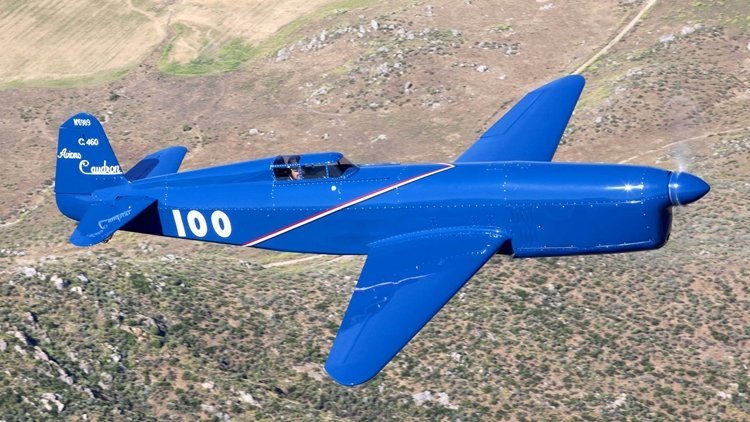

The Caudron C.450 and C.460 were French racing aircraft built to participate in the Coupe Deutsch de la Meurthe race of 1934.



Developed from the Caudron C.362 flown in the previous year's race, a single C.450 and three C.460s were built for the 1934 event. All were powered by a supercharged Renault 456 six-cylinder inverted air-cooled engine driving a Ratier two-position variable-pitch propeller. The airframe was primarily built from spruce and birch plywood, with steel and alloy engine bearers and magnesium cowling and fuel tanks. The wings were fitted with split flaps and the angle of incidence of the tailplane could be varied while in flight. The principal difference between the types was that the C.450 had a fixed spatted undercarriage, while the C.460 had a retractable undercarriage. This difference resulted in structural differences, the retractable undercarriage necessitating a two-spar wing for the C.460 in contrast to the single-spar wing used by the C.450.



For the 1936 Coupe de la Meurthe competition Caudron built two examples of a development of the C.460, the C.461. This was slightly larger, 8.185 metres (26 ft 10 in) long with a wingspan of 6.75 metres (22 ft 2 in) and weighing 661 kilograms (1,457 lb) empty and had a radically redesigned cockpit, the top being flush with the top of the fuselage and forward vision being limited to what could be seen through glazed-over semi-circular channels set into either side of the fuselage. Three variants were built, C.350, C.360, and C.361, witha total of 6 units across all variants were built.



For details of service history, click here.




  • Like 1
Posted

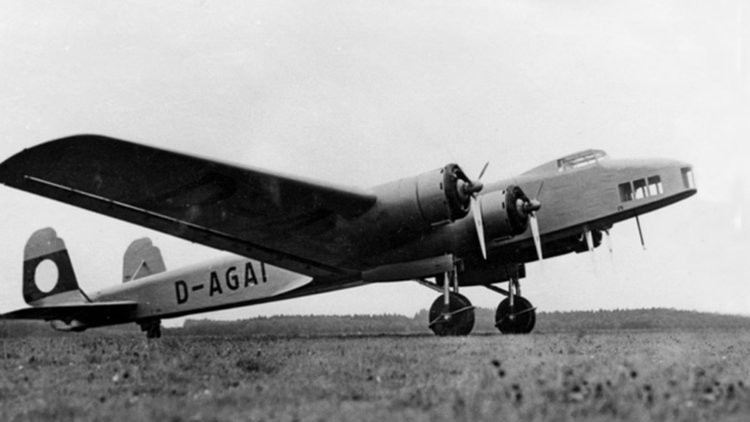

The Dornier Do 19 was a German four-engine heavy bomber that first flew on 28 October 1936. Only one prototype flew, and it was converted to a transport in 1938. The other two were scrapped.



The Luftwaffe lacked an efficient heavy bomber fleet. Generalleutnant Walther Wever, the Luftwaffe's first Chief of Staff, was the most persistent advocate of a German long-range strategic bomber fleet. The Dornier Do 19 was built for the Luftwaffe's Ural bomber program under General Wever, competing against the Junkers Ju 89. The RLM Technisches Amt issued a specification for a four-engine heavy bomber. But after Wever's death in an airplane crash in June 1936, Wever's successor, Albert Kesselring, canceled Germany's long-range bomber projects to concentrate on tactical bombers.



Both Dornier and Junkers were competitors for the contract, and each received an order for three prototypes in late 1935. The Dornier design was given the project number Do 19, while the Junkers prototype became the Ju 89.



The Dornier Do 19 was a mid-wing cantilever design, and was mostly metal in construction. It had a rectangular-section fuselage and the tail had braced twin fins and rudders, mounted on the upper surface of the tailplane, itself set low on the rear fuselage. This was quite similar to the tail of the contemporary British Armstrong Whitworth Whitley medium bomber. It also had retractable landing gear, including the tailwheel. The powerplant, according to some sources, was supposed to be four Bramo 322H-2 radial engines that were mounted in nacelles at the leading edges of the wings.



Its crew of ten would have consisted of a pilot, co-pilot, navigator, bombardier, radio operator, and five gunners.




  • Like 1
Posted

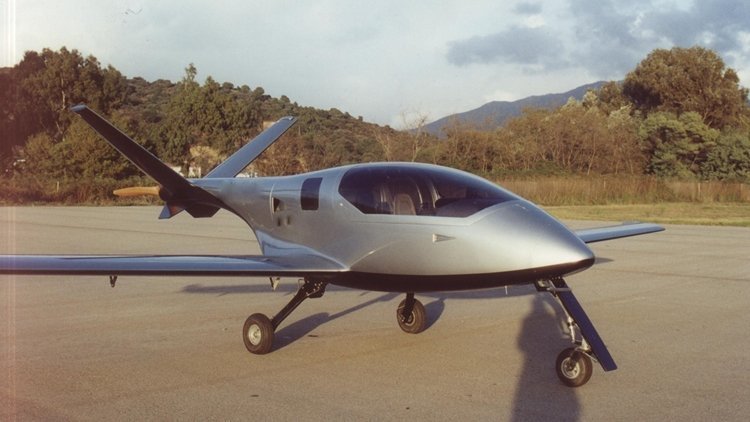

The Ameur Altania was a single-engine light aircraft of pusher configuration with side-by-side seats for two and a V-tail, designed in France in the 1990s. Several prototypes were built and flown, including a 15 m span motorglider version; the final prototype was constructed from carbon composites rather than glass fibre. Another version, the UCA Carbon Bird has been built by Universal Composite Aviation after the bankruptcy of Ameur Aviation.



The Altania was designed by the Corsica-based Ameur Aviation Technologie group (AAT) as the AAT Balbuzard (Osprey in English). It was a low-wing monoplane of pusher configuration, with a single buried engine driving a propeller at the extreme rear via a long driveshaft. The engine was mounted over the wing with a dorsal shallow air intake just behind the cabin. Behind the engine the fuselage became a slender boom, terminating in a butterfly tail and two ventral strakes. The cabin seated two side by side, with a small luggage space behind, and was enclosed by a forward-hinged, single piece canopy. There was a retractable tricycle undercarriage with inward retracting mainwheels, fitted with hydraulic brakes.



Five prototypes


The first prototype Balbuzard flew on 9 July 1995, powered by a 60 kW (80 hp) Rotax 912. Like the next three prototypes, this aircraft had a glass fibre structure.


The second prototype had an 88 kW (118 hp) Textron Lycoming O-235 engine, driving a three-blade, fixed pitch propeller, and a longer span and lower set wing fitted with winglets. The undercarriage height was also increased. This second prototype F-W(P)ARA was lost in 1997 when the propeller driveshaft failed in flight;


The third prototype, similarly powered, was renamed the Baljims 1A because of copyright issues. Between them, the second and third prototypes achieved 350 hours of flight testing.
The fourth prototype was a long span (15 m or 49 ft 2.5 in) motorglider, only flown for 30 hours before its development was abandoned.


The fifth aircraft, the Ameur Altania prototype, was built from pre-impregnated carbon-epoxy and honeycomb, because glass fibre construction of these prototypes led to excess weight. The fuselage was single piece and the single spar wing had double-slotted flaps and upturned tips. It flew in December 2001. This fifth prototype aircraft/first Altania F-WWMU is recorded as damaged in July 2005, with no mention of repair.





Ameur Altania 01.jpg

Posted

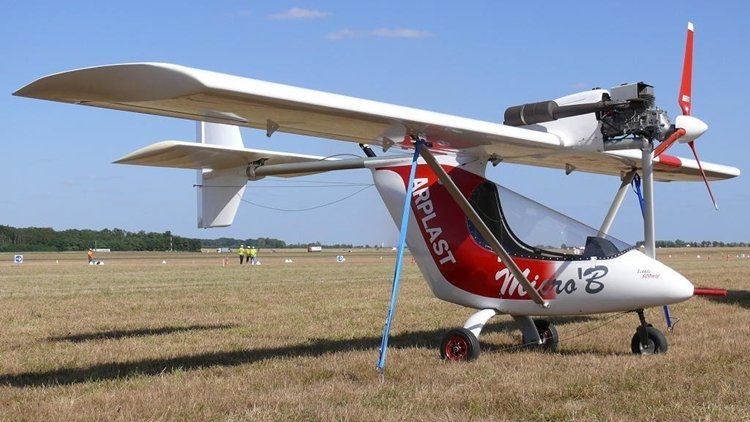

The Arplast Micro'B (English: Microbe) is a French ultralight aircraft that was designed and produced by propeller manufacturer Arplast Helice. It was supplied as a kit for amateur construction or as a complete ready-to-fly-aircraft.



The Arplast Micro'B was designed to comply with the Fédération Aéronautique Internationale microlight rules, with a lightened version for the US FAR 103 Ultralight Vehicles category. It features a strut-braced high-wing, a single-seat enclosed cockpit, fixed tricycle landing gear and a single engine in tractor configuration.



The Micro'B is made from a combination of welded steel and carbon fibre, with the flying surfaces made from the latter material. Its 8.6 m (28.2 ft) span wing is supported by a single strut per side and features automatic flaps. Standard engines included the 40 hp (30 kW) Rotax 447 two-stroke or other small lightweight motors, mounted on the main keel tube above the cockpit.





Arplast Micro'B.jpg

Posted

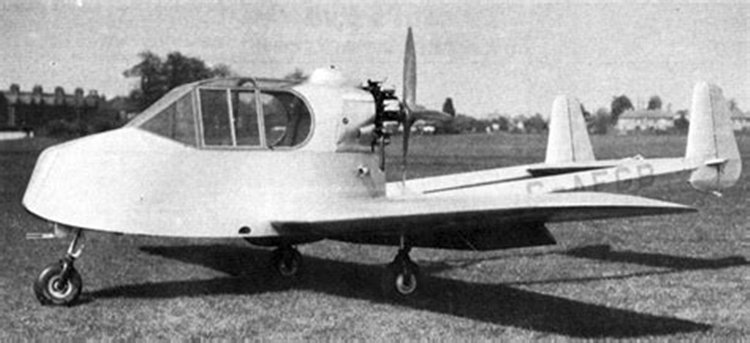

The Arpin A-1 was a two-seat low-wing monoplane which was powered by a single radial engine in pusher configuration, mounted behind the cabin between twin booms that carried the tail. An unconventional fixed tricycle undercarriage was fitted. Only one was built.



The Arpin A-1 was a low-wing monoplane of wooden construction and plywood covered. The empennage was carried on a pair of diamond cross section booms mounted on the rear wing spar at the edge of the centre section. The fins were tall, with a slight extension below the boom and carrying unbalanced rudders. The booms were at wing height but the side by side two seat enclosed cabin sat on the wing with the uncowled 68 hp (51 kW) British Salmson AD.9R radial immediately behind, with its centre line well above the booms and tailplane. The pusher arrangement and a short nose provided good visibility from the cabin.



The Arpin had a fixed tricycle undercarriage at a time when most aircraft used the tailwheel configuration. It was the first British aircraft to be designed for tricycle landing gear. In 1938 a very unusual McClaren type was fitted, which allowed all three wheels to be turned parallel to each other but not to the aircraft, so that cross wind landings could be made with the aircraft pointing into wind. The front wheel could be left to caster or could be steered by the pilot.









Arpin A-1.jpg

Posted

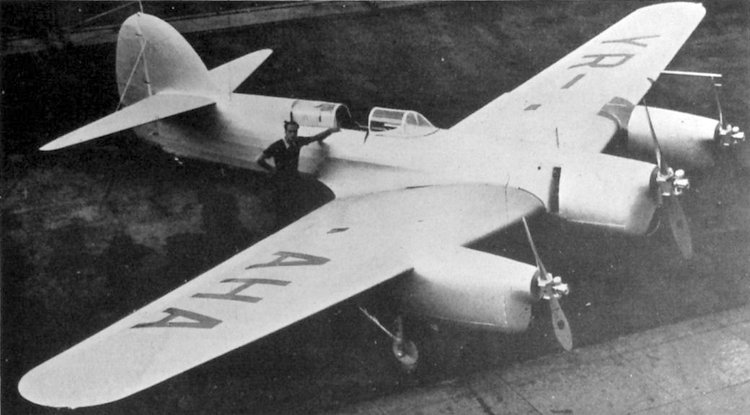

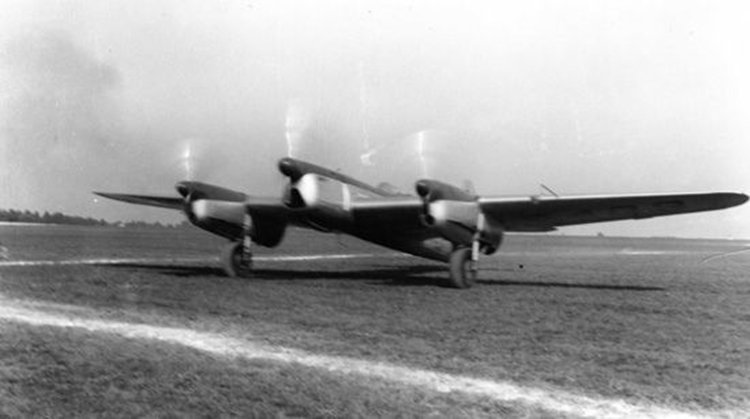

The Bellanca 28-92 Trimotor was a racing aircraft built to compete in the Istres-Damascus-Paris Air Race of 1937, and was paid for by popular subscription in Romania. Christened Alba Julia ("White Julia", registration YR-AHA) it was piloted by Captain Alexander Papana of the Romanian Air Force .



The aircraft was a low-wing cantilever monoplane with a similar fuselage to the Bellanca 28-70 and 28-90, but was fitted with three engines, one in the nose, and one in each of two underwing nacelles. The nacelles also housed the main undercarriage units when retracted.



The fuselage was of tubular steel construction and covered by aluminum back to the cockpit. Aft of the cockpit, the fuselage was covered with fabric. The wings and tail were plywood-covered, and the control surfaces were covered by fabric. The main undercarriage partially retracted into the rear of the wing engine nacelles, but the tailwheel did not retract.



Installed in each wing of the aircraft was a 250-HP (186 kW) Menasco C6S4 Super Buccaneer engine. The C6S4 was a direct drive, air-cooled, inverted, straight-six aircraft engine. The C6S4 was supercharged and displaced 544 cu. in. (8.9 L). Each C6S4 engine drove a 6-ft. 6 in (0.15 m) diameter, two-blade, adjustable-pitch propeller.



In 1938, Bellanca re-registered the aircraft in the United States as NX2433 and entered it in the Bendix Trophy cross-country race. Frank Cordova was the pilot for the race, and the trimotor flew as race number 99. Unfortunately, because of engine trouble, the aircraft did not finish the cross-country race.



The aircraft competed in the 1939 Bendix Trophy race, placing second, piloted by Arthur Bussy. After being sold in South America, the 28-92 ended its days rotting in a small field in Ecuador. Only 1 was built.



Bellanca28-92Trimotor01.thumb.jpg.90ff4dc7da65fedc1fa09527e5fd4846.jpgBellanca28-92Trimotor02.thumb.jpg.745a7c55e9b145476c15d9b37916e2d7.jpg





  • Winner 1
