BC0979 Posted September 21, 2023 Share Posted September 21, 2023 Hello from sunny Florida. You all have been very helpful in the past few months supplying valuable info that "the manual" has not. Working on the brake lines. Adding a Matco dual line park brake. Need your input on how the brake lines should be run from the toe brake cylinders knowing that the rudder pedals will also move the brake lines. I am worried about this back and forth movement on the nylon tubes. ICP supplied right angle connectors for each cylinder. Link to comment Share on other sites More sharing options...

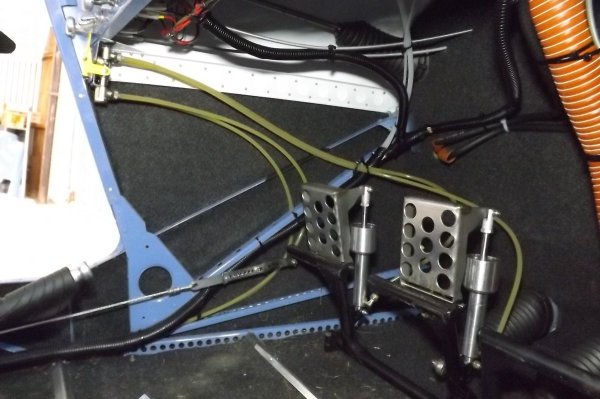

IBob Posted September 21, 2023 Share Posted September 21, 2023 BC here's what I've got: 2 Link to comment Share on other sites More sharing options...
BC0979 Posted September 21, 2023 Author Share Posted September 21, 2023 IBob to the rescue again!!!! From your pic, you just tie wrapped the nylon tubes to the side rail. Then up to your park brake mounted to the triangle corner brace of the instrument panel. Nicely done and straight forward. Thank you. Link to comment Share on other sites More sharing options...
Marty_d Posted September 21, 2023 Share Posted September 21, 2023 IBob is the man. Without his help my 701 wouldn't be as far along. Bob, how is the park brake done? Is it just a tap between the hoses so you push your toe brakes in then turn it to keep the pressure on the calipers? Link to comment Share on other sites More sharing options...
IBob Posted September 21, 2023 Share Posted September 21, 2023 (edited) BC you will use a lot of rudder, especially on takeoff. The lines from the pedals/cylinders have enough slack in them that they never pull into a tight bend, even with full pedal. And the fittings at the cylinders are cocked forward so that the lines stay forward of the pedals, out of the way. Marty, yes, it's just a pair of stop valves, ganged together, one for each line. To activate you step on the brake pedals while shutting the ganged valves. Allows you to park with wings level on a slope, so avoiding fuel crossfeed and overflow. But best supplemented with some sort of chocks if the slope is steep or the visit is long. ICP sell it as an option, comes complete with a steel mounting plate for the ganged valves. Edited September 21, 2023 by IBob Link to comment Share on other sites More sharing options...
IBob Posted September 21, 2023 Share Posted September 21, 2023 I should add that some versions of the parking brake valves are one-way valves , with the brake lever lifting them to become 2-way valves when in the brakes off position. The brakes are operated by first selecting the brake position on the lever, which makes the internal valves one-way, then stepping on the brake pedals to apply pressure, which is then held by the one way valves until the brakes are turned off, with the lever lifting the one-way valves and making them 2-way. The gotcha with this setup is that sometimes folk hook them up with the valves the wrong way round. The result then is that pressing on the brake pedals does nothing, as the one-way valves prevent the pressure going to the wheel cylinders. And further, if there is confusion over the lever position, there may be no brakes on landing. 1 Link to comment Share on other sites More sharing options...
facthunter Posted September 21, 2023 Share Posted September 21, 2023 Makes BRAKES checked OFF essential in your pre landing check. and before you commence TO roll. Nev Link to comment Share on other sites More sharing options...
BC0979 Posted September 22, 2023 Author Share Posted September 22, 2023 I am using the Matco dual park brake https://www.aircraftspruce.com/catalog/lgpages/matcoPBVALVE.php?clickkey=37808 1 Link to comment Share on other sites More sharing options...
IBob Posted September 22, 2023 Share Posted September 22, 2023 Okay, I see when you look at what they call the Install Drawing, they identify an Inlet Side and an Outlet to Brake Side: so long as you stick to that I'm sure you'll be fine. Link to comment Share on other sites More sharing options...
BC0979 Posted September 22, 2023 Author Share Posted September 22, 2023 I had initially thought that I would mount it on the firewall and use a control knob on the panel but like your idea better. Link to comment Share on other sites More sharing options...

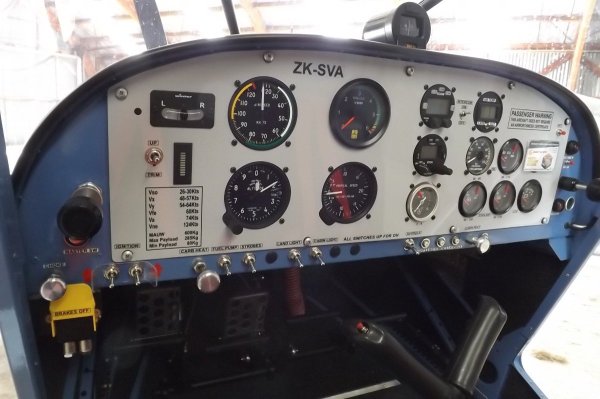

IBob Posted September 22, 2023 Share Posted September 22, 2023 BC, the ICP setup comes with a flat plate that pivots down to operate the brakes, up for brakes off. It's the yellow bit in the pic, taken with the brakes off. Link to comment Share on other sites More sharing options...
BC0979 Posted September 22, 2023 Author Share Posted September 22, 2023 IBob, I can do the same with the Matco. Lever up or down for brakes set or brakes off. Thanks for the pic of your panel. 1 Link to comment Share on other sites More sharing options...

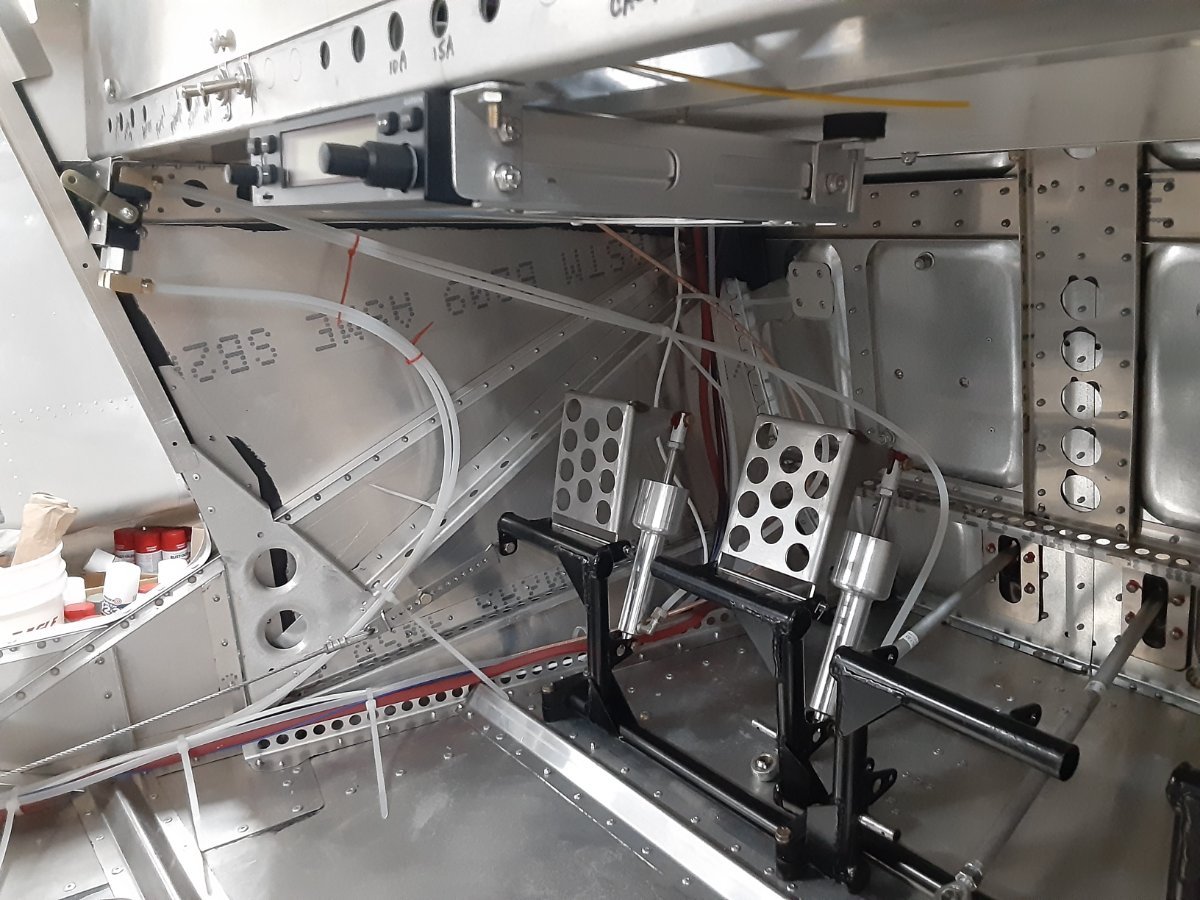

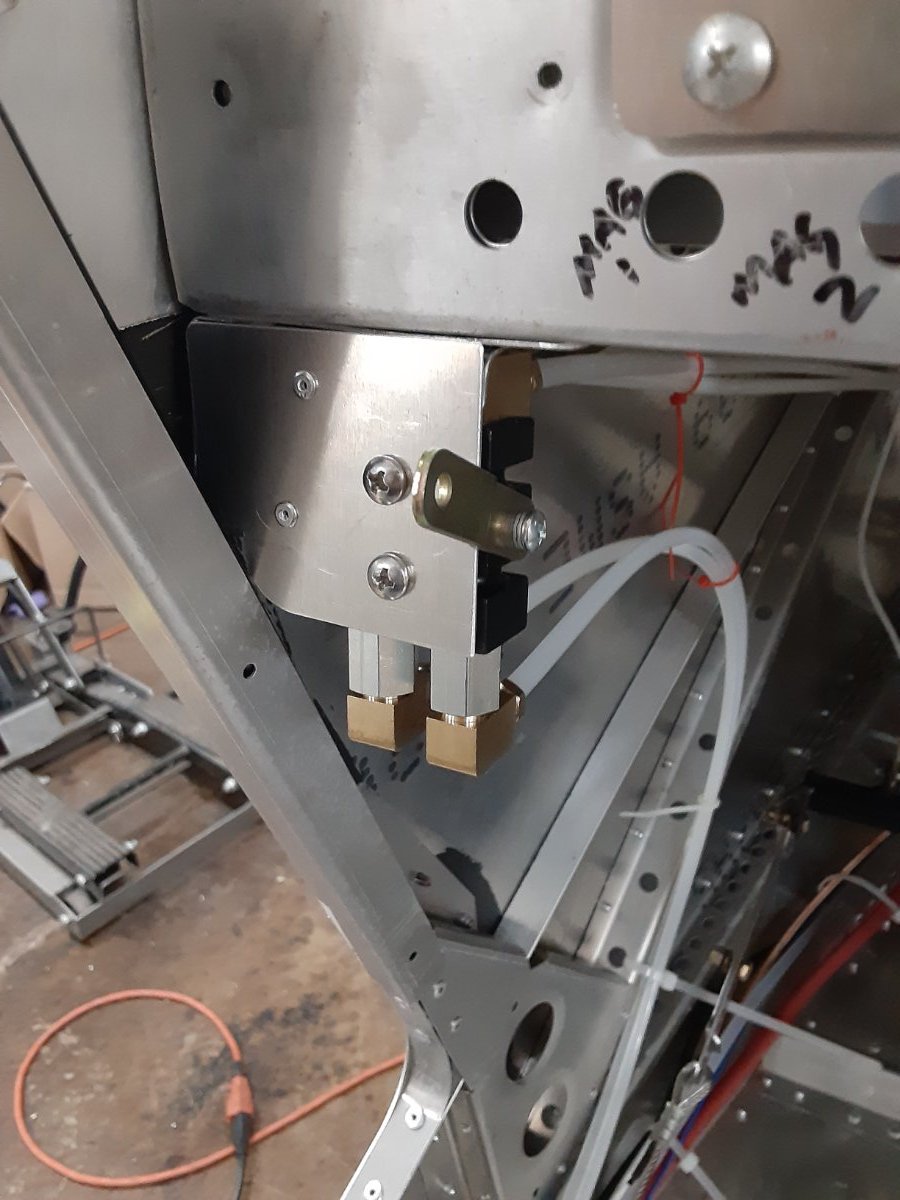

BC0979 Posted September 26, 2023 Author Share Posted September 26, 2023 IBob, Thanks to you, I installed the park brake today 😁 3 Link to comment Share on other sites More sharing options...
IBob Posted September 26, 2023 Share Posted September 26, 2023 Looking good there, BC! Link to comment Share on other sites More sharing options...
IBob Posted September 27, 2023 Share Posted September 27, 2023 You may want to get your firewall blanket/lagging in there. Also your carpet if you're going to fit that. Link to comment Share on other sites More sharing options...
BC0979 Posted September 28, 2023 Author Share Posted September 28, 2023 What did you use? ICP carpet kit? Link to comment Share on other sites More sharing options...
IBob Posted September 28, 2023 Share Posted September 28, 2023 6 hours ago, BC0979 said: What did you use? ICP carpet kit? Yep. It's all precut to shape. And I used Ados F2 contact adhesive, but with some thinners added: the fumes are bad, you have to wear a mask, but it spreads on easily with a brush that way and allows the piece to be lifted and shifted if necessary. The bond is not as strong as using straight adhesive, but it is more than adequate for carpeting: 4 years on none of mine has come loose. Link to comment Share on other sites More sharing options...
