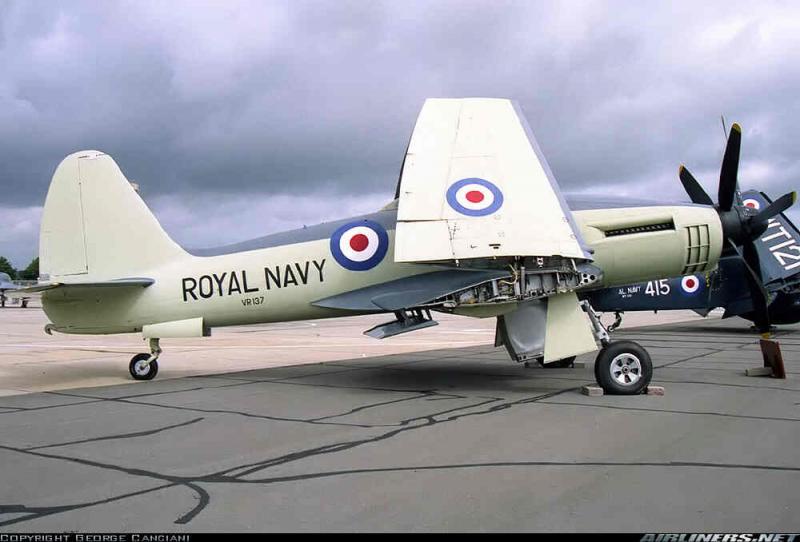

Deskpilot Posted May 22, 2009 Posted May 22, 2009 Nev, Wyverns started with RR Eagle 46H Piston engine then were refitted with RR RB Clyde R.C.3 turbos. Later refitted again with Armstrong Siddeley ASP.3 Python Turbos. The only remaining sample is a non flying TF Mk1with the Eagle power plant. It is believed that this aircraft has never been airborne. What a shame. Now it's too precious to risk.
hihosland Posted May 22, 2009 Posted May 22, 2009 As windsor did say its a Myers OTW 145 A history of the aircraft has just gone up in the articles section cheers Davidh
Chrisso Posted May 22, 2009 Posted May 22, 2009 Another view... Details on the photo gave it away. Its a Meyer OTW (out to Win)
facthunter Posted May 22, 2009 Posted May 22, 2009 Info. Thanks Doug, It's smaller than I thought it might be. The eagle has what HP?. Nev
Deskpilot Posted May 23, 2009 Posted May 23, 2009 Nev, we're breaking into some else's thread so your final answer is: Eagle, continuous power 3,500hp @ 3.300rpm Armstrong Turbo, 8,000hp @ 7,800rpm. RR turned at 6,000 rpm but I don't know the hp.

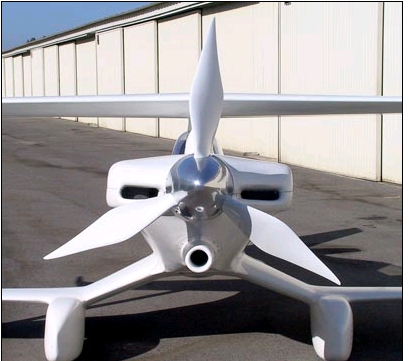

Guest Maj Millard Posted August 1, 2009 Posted August 1, 2009 I'll go with a Mong racer on this one, with a racing prop also.....................
hihosland Posted August 1, 2009 Posted August 1, 2009 Yep a Mong it is. I posted an article on this aircraft at Tom Aberle’s Phantom - Articles on the 23.7th. best of wishes Davidh
Downunder Posted October 16, 2009 Posted October 16, 2009 Hello, I would like to know what this aircraft is? lg_K2GW05544ZZTX55_pic32 123.bmp lg_K2GW05544ZZTX55_pic32 123.bmp lg_K2GW05544ZZTX55_pic32 123.bmp
Guest Decca Posted October 16, 2009 Posted October 16, 2009 Ozzie flies a Lazair, & it looks very similar. (Hope that's the correct spelling). Decca.

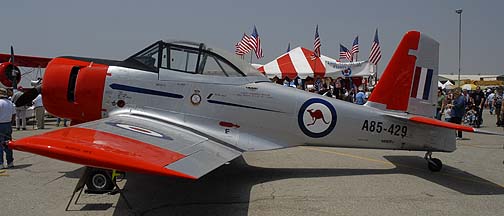

winsor68 Posted October 18, 2009 Posted October 18, 2009 This has to be a trick but I will be the first to state what at first appears to be the obvious....Winjeel.
DarkSarcasm Posted October 18, 2009 Posted October 18, 2009 haha, yes you're right. I saw one at YLIL yesterday so I'm enthusiastic
Tomo Posted October 18, 2009 Posted October 18, 2009 Privately Owned - Irvine, California / 1959 Commonwealth Aircraft Corp CA-25 - Winjeel:blush:
Guest Maj Millard Posted October 19, 2009 Posted October 19, 2009 Yes Downunder, looks like a stock factory Lazair with Mylar/Tedlar covering and wheel spats. Appears to have the single cyl Rotax 125cc motors, with the 'biplane' carbon props ( two little props, one on top of the other biplane fashion) The whole aircraft weighed only 180 Lbs, and could carry the same weight. 5.5 Gal fuel capacity and only burned 1.8 Gals an hour-both engines. 36 Foot wing span...a delight to fly, what I would imagine it would feel to fly a big eagle, if that were possibly.

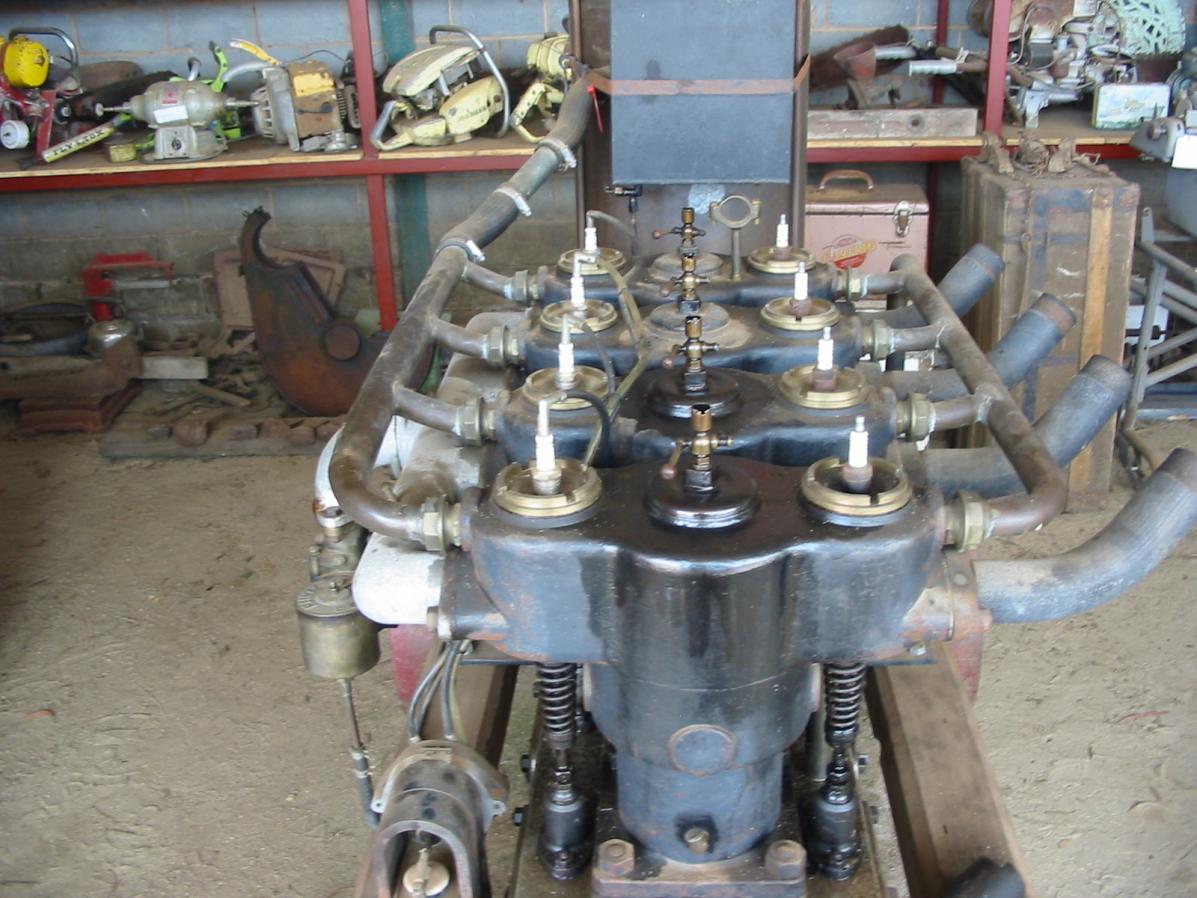

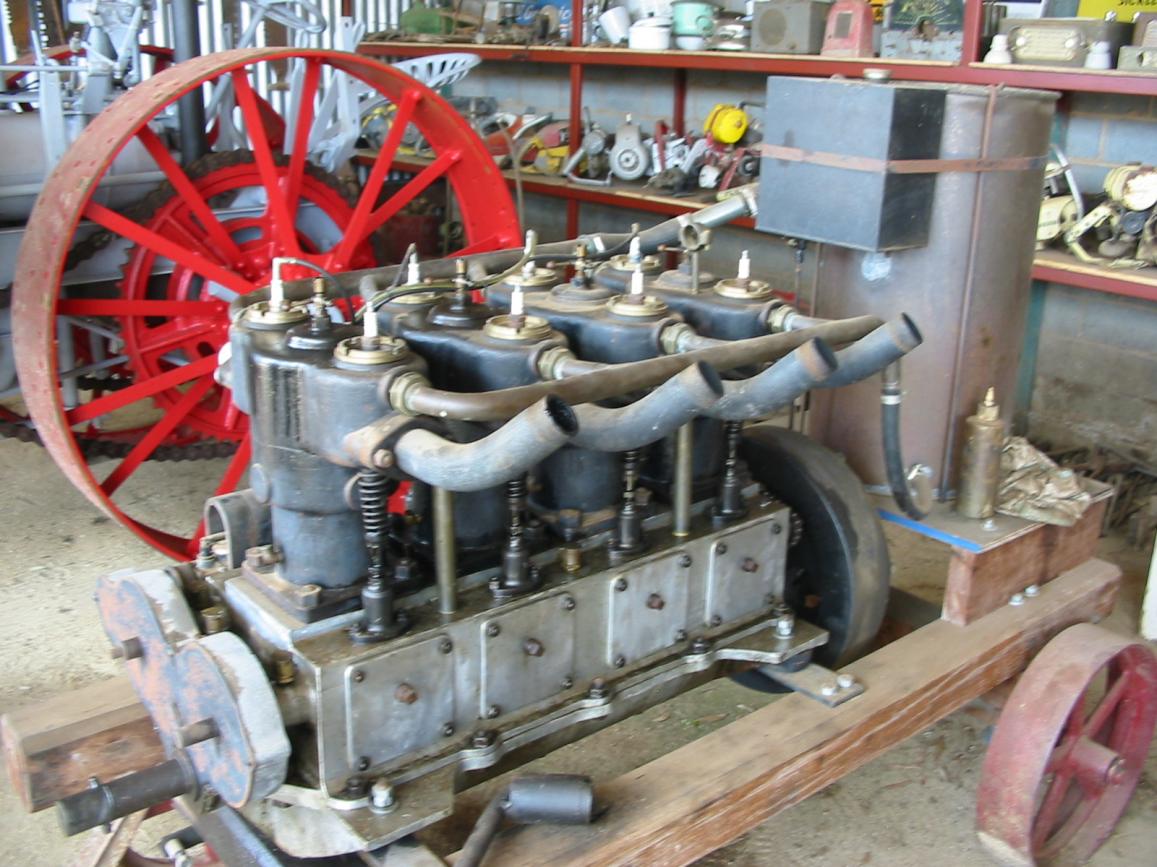

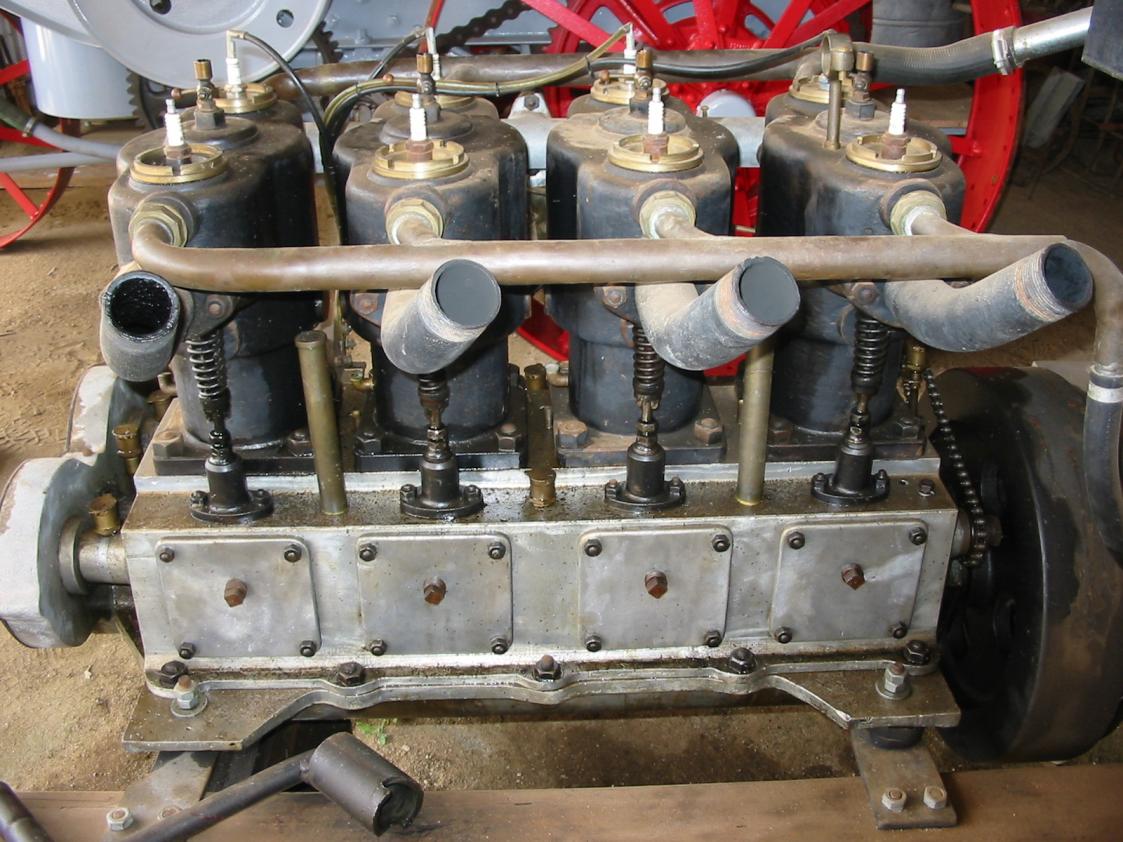

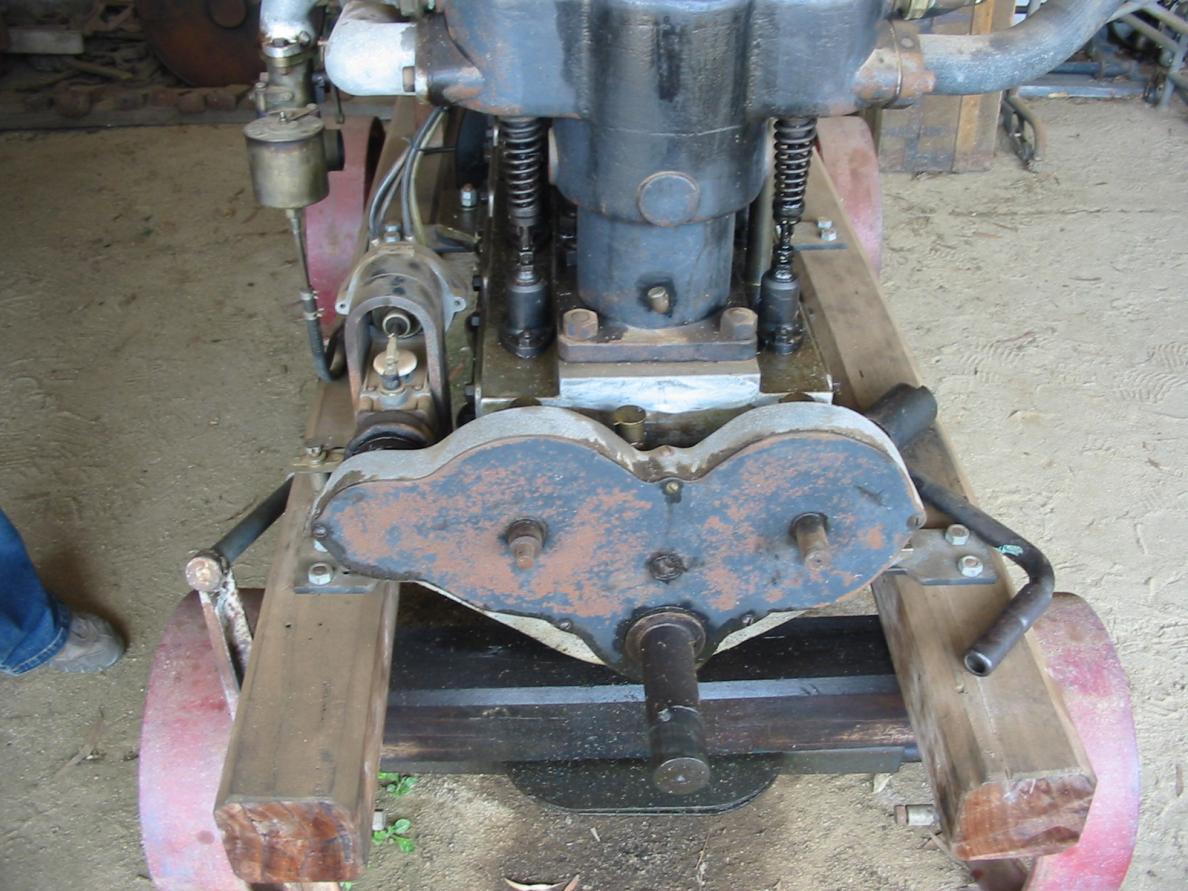

turboplanner Posted October 20, 2009 Posted October 20, 2009 Mystery Engine Perhaps 1910 to 1915 Total loss oil system Cone clutch, so may have driven two props
turboplanner Posted October 20, 2009 Posted October 20, 2009 Mystery Engine Perhaps 1910 to 1915 Total loss oil system Cone clutch, so may have driven two props Runs
stanzahero Posted October 20, 2009 Posted October 20, 2009 It spins counter clockwise... Is that the one at Finley in NSW? The guy found it in a scrap yard and then got it going.. maybe an oilier from a steam engine - pile driver from when they built the bridge? IT looks way too heavy for aero... It has similarities to a 1910 tractor from the UK. Something similar: http://s68.photobucket.com/albums/i8/dgwparfitt/images2/Saunderson_SwanHill07_1c.jpg Most aero engine from the time were aircooled and anything bigger than a couple of cylinder was radial. Stanzahero
Guest Maj Millard Posted October 20, 2009 Posted October 20, 2009 Yes I tend to agree, aero engines also don't usually have large flywheels like that...possibly marine. I did think it was a Liberty aero engine at first look.
turboplanner Posted October 20, 2009 Posted October 20, 2009 Yes, this is the one at Finley. I still wouldn't rule out an aircraft. A lot of the early ones were water cooled, with large flat radiators, like the S.E.5 This engine was designed with twin ignition systems, and has an aluminium block - similar to the Liberty. What makes things difficult is that it has been rebuilt with non standard components. A single magneto from something else is fitted and only one set of plugs connected. The cooling system is from a stationary engine layout, and could be at the opposite end of the engine to the original. The oiler system, which would have helped identification, is missing. And it has that sewing machine wheezing sound like early WW1 engines. I'd accept Major that the heavy flywheel could be the killer, but there's no guarantee that was from the engine either.
stanzahero Posted October 20, 2009 Posted October 20, 2009 Hi Turbo, Yes this had me stumped as well when I saw it and I'd be interested to know what it was. The year was a bit of a clincher for me as far as aero engines go. The Liberty was either an eight or a twelve but it didn't come till '18. I still don't deny the idea that someone may have developed their own four as there was no machine or manufacture marks on the engine. But then what was flying in that period of time for someone to get that adventurous with engine size? The aerobase at Tocumwal (local area) didn't come into being till WW2 so that rules that out. Agriculture or River Trade was my conclusion. And the enrichment thimbles on the top of the cylinder heads... I have a movie of it running but at 4Mg it won't upload Did he start the BIG diesel for you Turbo? Stanzahero
Guest ozzie Posted October 20, 2009 Posted October 20, 2009 sheering shed engine maybe. that flywheel looks like it runs a belt.
turboplanner Posted October 20, 2009 Posted October 20, 2009 Yes Stanza, he started the big one. That compressed air start is so reliable and the big engine is soo smooth. In fact he started so many engines that I got embarrassed that my Entry fee was being burnt up. He even has a Commer Knocker ready to roar away! Lovely guy; if you are travelling through Finley, stop off for an hour - the Museum's at the southern end of the town on the eastern side of the Newell Highway. On the mystery engine, don't worry about the year - no one knows, we're just speculating. If the cone clutch is original, that could point to marine, or a twin prop design (start the engine with the crack handle, hop in, engage the props etc. It could even be an early race car engine. The intriguing parts to me are the twin ignition system, total loss oil system and aluminium block. The lack of machining/manufacturing marks may not be significant. I remember reading a history of a guy who used to run joy flights around the country. Had an engine fail at Clare or Hawker, managed to hop the fence and force land in a dried swamp bed in the next paddock. He found the problem was a cracked cylinder, borrowed the local blacksmith's shop, cast and macdhined a new cylinder and was on his way. So this engine could have been built by anyone. I've got a two file camera video, just need to work out how to load it.

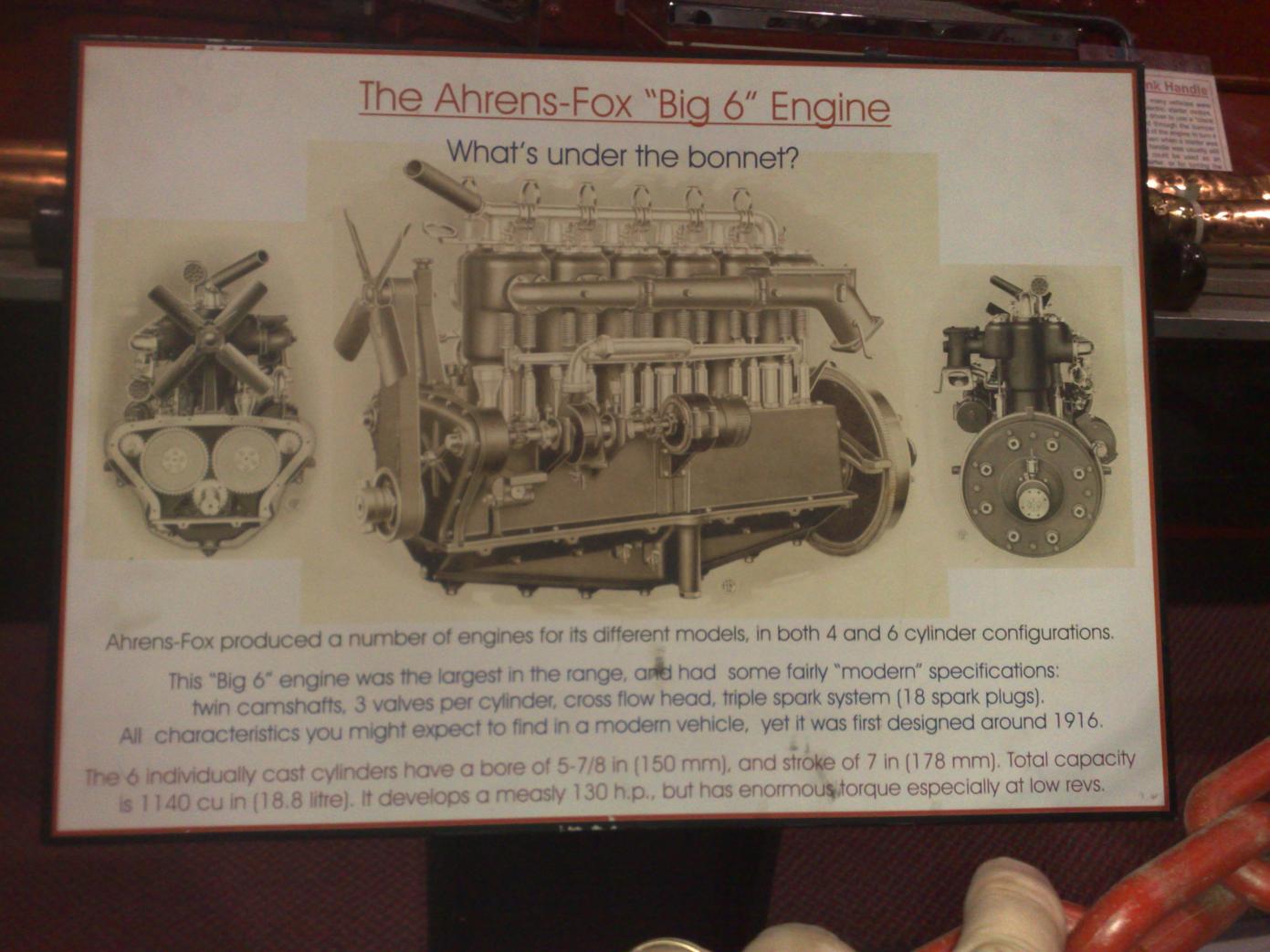

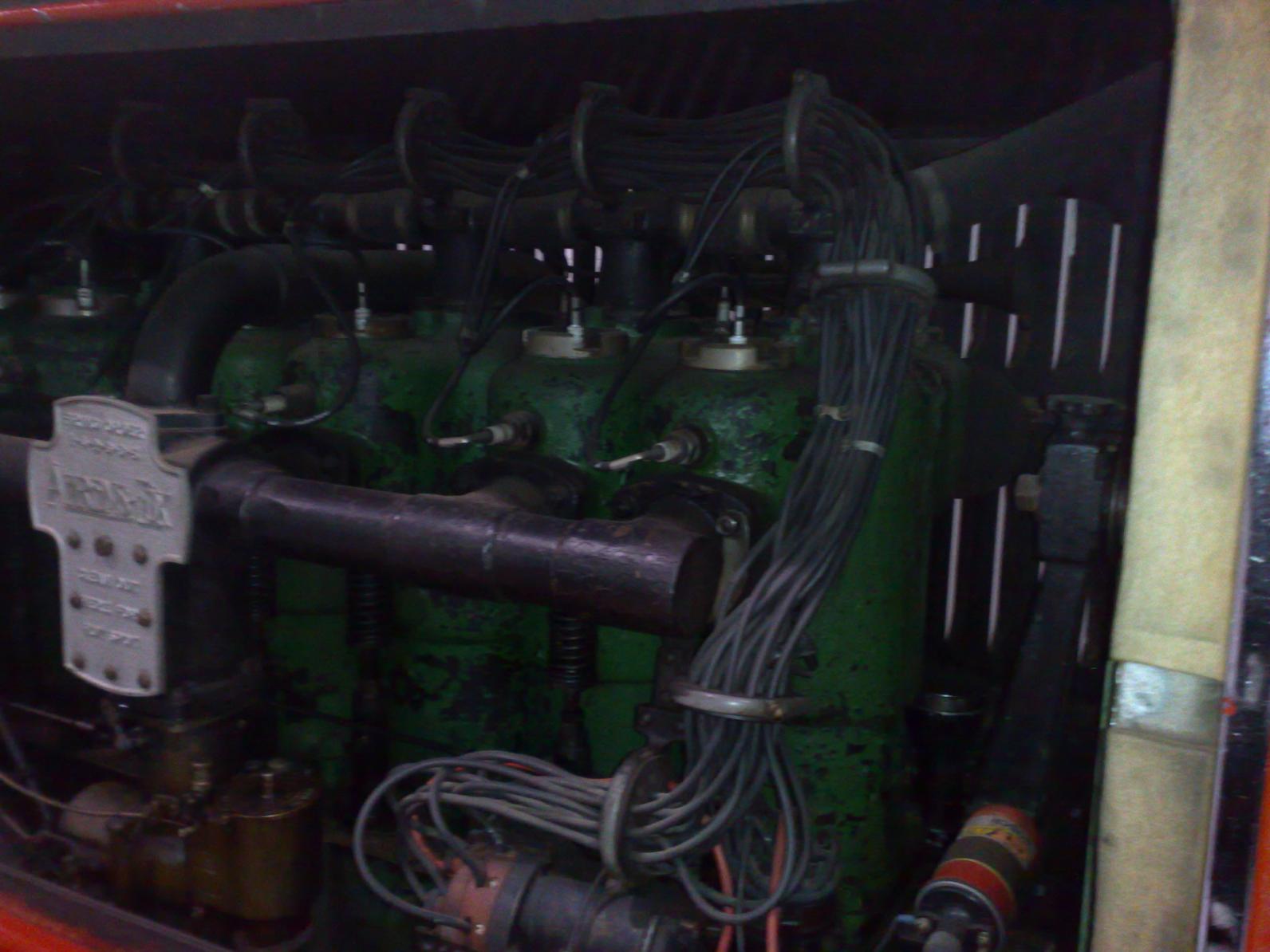

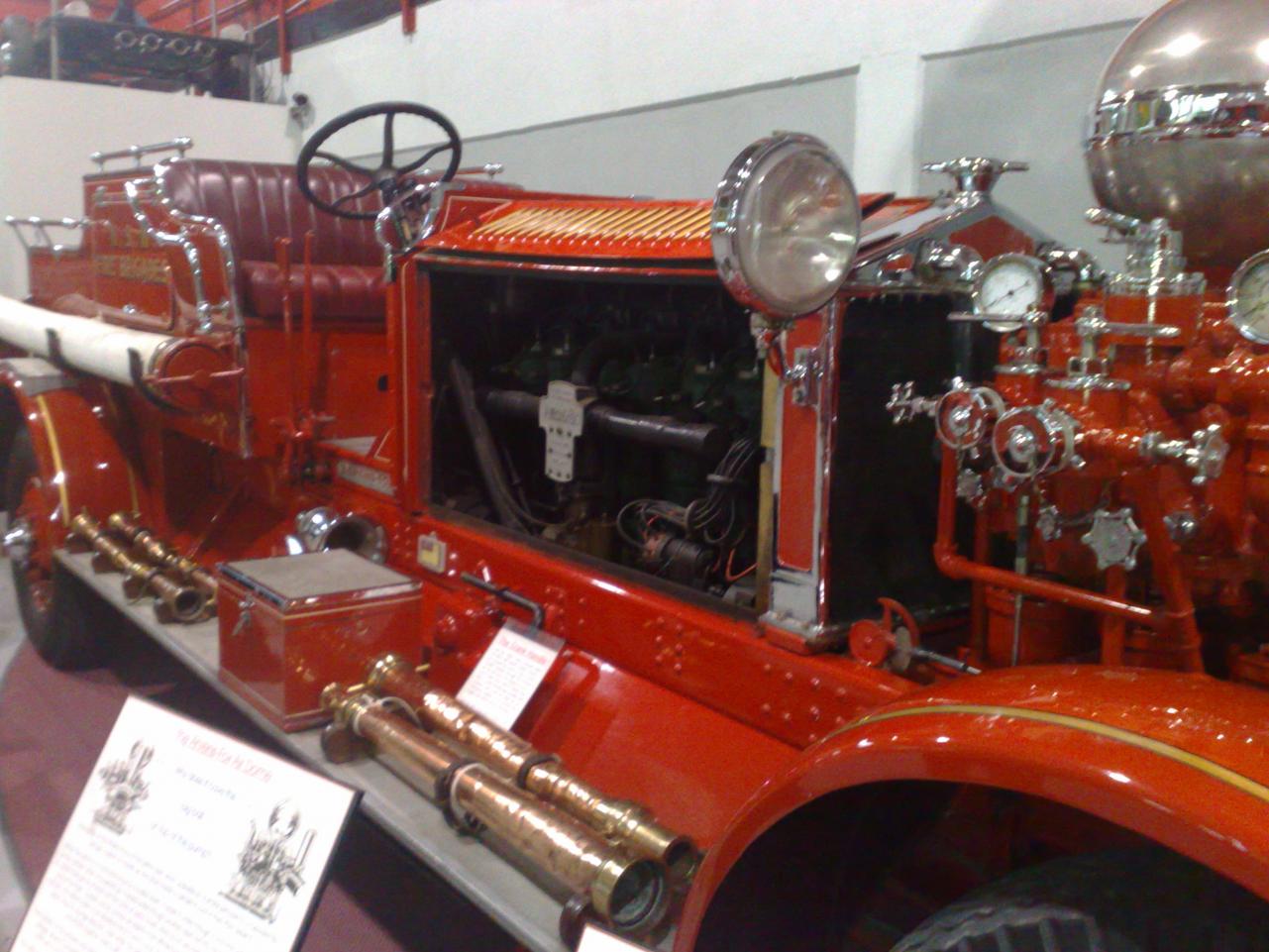

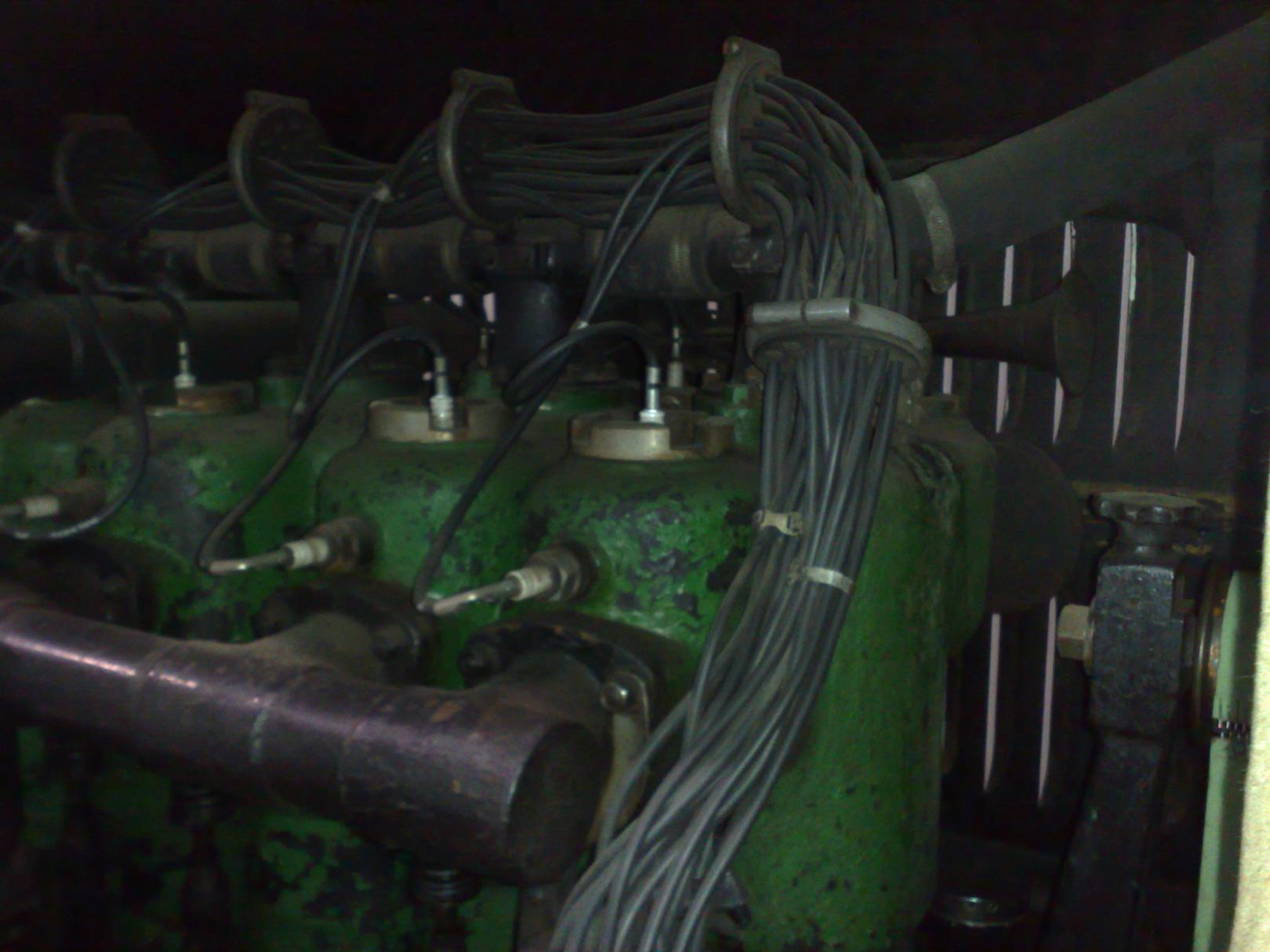

stanzahero Posted November 8, 2009 Posted November 8, 2009 Ahrens Fox - Mystery Engine Hi Turbo, I was at the Fire Museum in Penrith (Sydney) today when I noticed this truck. #Attached Photo# The engine has some very distinguishing features: T-head; Twin cams - one either side of the block; Enrichment thimbles; Even the plugs are in the same type of housing. The one I found was a 1929 so it is likely that the extra valve and spark plug are a development. They were originally built in 1917 so the time-line seems to fit as well. I'm thinking we have the engine - at least the application. This is also a link with some more Photos... 1931 Ahrens Fox 1000 gallon piston pumper for sale Stanzahero
