RFguy

Nice work Jim. I can do the flasher electronics for us. Let me know the precise lens used- I will buy some and generate some flasher electronics. Do we have a suitable LED 'bulb' to go init? there will need to be some optimization of LED launch location to maximize the lens coupling I will get my Jab flying again soon enough, I'll follow your path.

If it was high summer, you might do it in one day- IE lots of light and potential for a 2 hour rest in the middle.. but I am sure you are going to feel like sh1t after two legs ... IE not going to enjoy the last hour, and ask yourself, would you pass your BFR in the last hour of the 7 hour flight??? >3.5 to 4 hours a leg is about the threshold for where I no longer enjoy it and, and the threshold where I might be fatigue compromised to deal with a difficult crosswind. But, it depends on the weather. and having an autopilot if good weather might assist depending on your aircraft rigging and fuel balance... (My Piper flys hands off S&L) Going out to broken hill at FL125 with no wind, clear skies, I was fresh as a daisy after 3.5 hours... Going from the YPMQ on coast over to Cowra, a similar distance, in poor, awful terrible weather crossing the range the whole way, I was trashed after 3.5 hours and elected 'to the easy way out' and do a straight-in & land on the grass at Cowra into the wind, rather than go into circuit and deal with the moderate X wind ....

use of a rubber duck inside a metal bodied aircraft is never going to work well, the metal; body at aviation wavelengths ~ 2.5m is like a shield can.

and AC 43-6D (faa.gov)

it takes a bit of time to do because the altitude encoder needs to be walked at a reasonable rate (500 fpm) up AND down from peak altitude, and corresponding transmitter pressure altitude needs to be checked off. Most seem to use a a climbing 9declining pressure) rate and just watch the dials on the transponder and the instrument pressure generator. output of the encoder is 100 ft steps. +/-50' / 125' error, Per CAO100.5, section 14, refers to Appendix F of FAR part 43 eCFR :: 14 CFR Part 43 -- Maintenance, Preventive Maintenance, Rebuilding, and Alteration (FAR Part 43) More advanced gear reads the PA from the decoded, transmitted waveform, and checks for waveform fideltity, timing , which these days will be working, or not. The two techs I have see use a little buggery box that generates a ping to the transponder next to the aircraft (a few microwatts) and lists for the return and displays it. for those interested in the other instrument requirements - how to check : and has requirements, tolerable errors etc , subpart E eCFR :: Appendix E to Part 43, Title 14 -- Altimeter System Test and Inspection (Appendix E to Part 43, FAR)

So, these Generative AI tools, while pretty useless for facts (they just regurgitate) , I am surprised how well they enact a summary when asked. That 2400 reduced to 200 words was impressive and succinct .

I've asked Google Gemini to summarize Mr Stewart's last post: ---------------------------------------------------------------- The witness is expressing frustration and anger towards a group of people who they believe are not being respectful or helpful. They claim to have witnessed an incident involving a pilot and a plane but refuse to provide any further information or video due to the negative responses they have received. The witness accuses the group of being disrespectful and unhelpful, and concludes the conversation by stating that they will not be providing any further information. -------------------------------------------

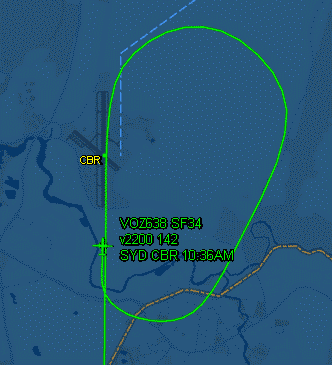

An Echidna on RWY35 in Canberra just caused a Saab 340 to go-around (from about 1000' AGL) ATC asked them to make a tight circuit . And was told " to slow down in circuit", (230 kts in the first 180 deg turn.... ), as there is 'some difficulty removing the beast'. I had an Echidna in the Hangar on Monday And a Echidna had to get removed from the RWY at Cowra last week.

+spare parts list- spark plug wrench to fix fouled plug

It made a reasonable fist of a summary eh ?

Put the post into an AI chat robut like Gemini and tell it to " reformat " here is the result after removing non printables The text you provided seems to be an eyewitness account of a light aircraft crash. Here's a breakdown of the key points: Witness account: The author witnessed a light aircraft crash at Boonah airfield. The author claims the aircraft was in good condition before takeoff. The pilot performed a normal takeoff but then climbed too steeply. The engine failed, and the aircraft crashed. The author recorded the incident on video and called emergency services. The author's thoughts on the cause of the crash: The author speculates that the pilot might have panicked or made a mistake during the climb. They also consider mechanical failure as a possibility. Additional points: The author emphasizes the importance of pilot training and safety procedures. They acknowledge the emergency services' work and the role of Nigel Arnott in the aftermath of the crash. The author mentions their own aircraft (Angel 1) and their experience in aviation. What I can't do: I cannot determine the cause of the crash based on this account. An official investigation is needed. I cannot verify the accuracy of the information provided by the author. Is there anything specific you'd like me to do with this information? I can help you summarize it further, answer questions about specific parts, or search for news articles about the crash (if available).

hose spec is -7 psi at 150C, so that hose is fine. max neg is -4.4psi at full smoke. I think there are a few bad installs around the place with radiators with too much pressure drop, or hoses too long/ of insufficient diameter (causing pressure drop) on the suction side. (min spec 10mm, suggest 12mm)

A few days later.....Pull-Pull cable control airplanes. mutter mutter .. Well I can very much appreciate the simplicity of the jabiru with its pair of push-pull teleflex cables.....as sloppy as it is.

and most aircraft (common , conventional types) that RAAUS fly all have similar ranges they work in as a % of MAC so a bit of a sanity check can assist.

yeah but if they said aft CG limit was 900mm behind the datum , and the datum was specified as the leading edge of the wing, but that was wrong, and in fact it was the firewall , at say, 200mm forward, then operators would have been running 1100 mm aft of the datum.. a very different case...

How far is the leading edge from the firewall (datum) ?

further.... think of the length of the region of flattening (usually in middle 20mm I think ) , this covers all the strand bundles because of the helical wind... IE you are getting flattening in all the bundles and a high proportion of all the wire in each bundle- this is not simply isolated broken weak strand. It will be interested to do a load test on this cable, see how far it is above the normal tension that it lets go. In radio masts, we'd use this size guy cable for about 500kg working.

Control cables really do wear out. (steel) The macro lens of modern smartphone is rather useful for this : More closely investigating a rather shiny cable where is runs with considerable tension under the pulley, one broken strand. Can be felt with finger. Replaced. One might think 1 of of 49 (63?) strands is no big deal, but reading AC43, and closer inspection reveals the flattening wear of the cable (making for shiny appearance) is the cable strands being worn down and thinned under the pulley pressure... and eventually one lets go. Given that a lot of them are simultaneously worn down and thinned, a whole lot might let go shortly.... You could probably fly on this for another year (or 5) with before every flight inspection , but given that cables are in stock locally, it should be replaced. Document AC43 provides guidance on this, as usual . (replace it) . Lots of airplane maintenance stuff is annoying and painful, but ultimately these annoying things, will save your arse.

there are some differences and compatibilities between certain types of 'suppressor leads"

HONDA part number 30500-Z1C-023 Go onto jab-camit groups.io forum for more information here https://jabcamit.groups.io/g/main/search?p=recentpostdate/sticky,,R ignition coil failure,20,2,0,105990390

yeah but some of these strips you want something different.... like flying in across a deep ravine, I think that's a engine-idle glide approach , so you will make it and not fly into the side of the mountain if you have a failure.

There is a thing I think needs more focus on in classrooms and teaching. I call ' dead man's height " where at about 10 feet you can stall and break to the main gear. We've all been very close to it at some point in our flying during landing and training . either --------you flared too early and you're still 10-15 feet above the ground but now speed / energy has decayed and you're only just at flying speed above the stall, OR - you bounced... this is a problem : i) you cant do another flare,- the flare is an exchange of energy and there's no excess energy (speed) available to do this. ii) and the speed will decay (while you are 10-15 feet in the air) to below stall before you come down to the ground . wing drop or sudden whole aircraft drop. iii) and you cant point the nose toward the ground to get it down because you'll likely smack the nose on the ground -- as a nose down will kill any lift you have with sudden reducing the AoA and drop u like a stone on the nose. Human reaction time isnt good enough to point nose at the ground from 10 feet away and then immediately bring it into some precision save. If you are *lucky*, the aircraft will drop close enough the ground into ground effect and buy our aircraft a few more knots before stall. Likely is you'll pancake on the mains and the nose. This save is more arse than class. If you bounced because you had way too much airspeed on the first touchdown , and IF you know the airplane well and have experience, there's probably just enough for a 2nd flare/landing. It will still be a bit ugly and heavy. You might think you can add a little throttle but this can leave you not falling but still decaying airspeed because the aircraft is in a high drag configuration (high AoA, flaps) So, the decision has to be made for a committed go around a few knots above the critical speed. Down near the stall, aircraft control is usually sluggish and woeful, so dont wait till its like that ! This brings me back to non go-around strips. There has to be committment. And with that there needs to be precision with the approach (stabilised) , caution and preparedness and some rehearsed in your head actions.

the BMS MAY do a number of things 1) first and foremost- ensures cells stay balanced. usually this is done by shunting current around a cell if it is higher than a max voltage. IE it stops a high cell rising further. most have passive balancing- think of a 3.6V zener diode (or approx that) across each cell. during charging, if the cell tries to rise above the zener voltage of 3.6V, the zener tries to short the current, preventing current flowing through the cell (preventing more charge). there is some active balancing systems where there will be some controller that attempts to equalize the batteries by pushing charge around. I'd expect most vehicle batteries (EV) to do this. 2) low voltage disconnect - I wouldnt want this in an aircraft.... often they wont reconnect without some specific charge type. 3) over voltage disconnect - not so common- disconnecting the battery from the terminals if the voltage is getting too high (charge source unsuitable) . LIFEPPO4 batteries are in general not compatible with common charge systems.. this is because their internal resistance is very low, and the batteries being charged looks like a short circuit- chargers need to be current limited. Voltage wise, they're quite compatible with lead acid ... as long as a lead acid charger (usually used for remote power systems) doesnt have an equalise mode enabled where it intentionally gases all the cells (high voltage) to get them all the same.

depends how RF noisy it ends up being....

the problem with those batteries is some of them can disconnect themselves ... that is bad for electronics both lack of power supply, and consequent high voltages and nasties that will occur with the perm mag alternator driving no battery Rotax have shown poor engineering judgement (lack of capability, understand, experience and knowhow)
