Hi all,
Recently, when doing an inspection of my VG XL, I discovered cracks in the bracket which supports the steering wheel channel on the nose leg.
The cracks were on both sides of the assembly and you will see from the photos, penetrated all three layers.
No need to tell you the consequences of a nose wheel failure.

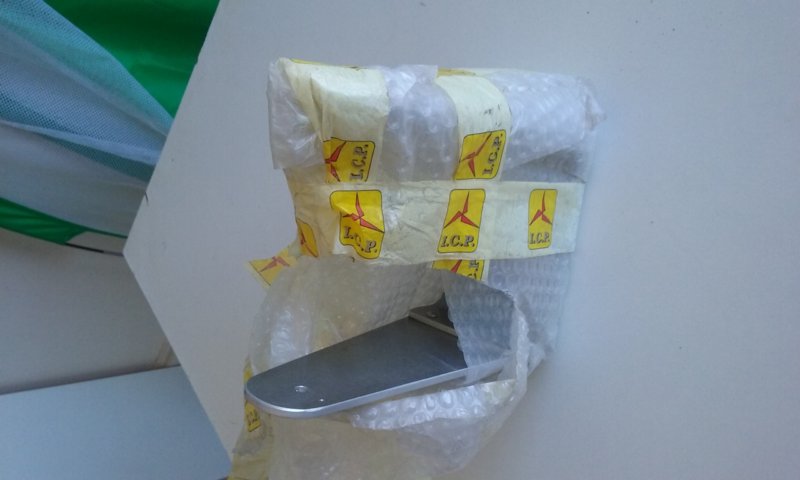

Fortunately I was able to get a steering wheel channel, reinforcement, and new nose leg support from AeroKits. The ring mount allowed us (just) enough room to change it over without removing the engine.
The replacement is a modification to strengthen the area and hopefully eliminate a repeat of the issue, so it is obviously a problem which has raised its head before.
Consequently, I think we would all be wise to include this item in regular inspections.
Regards to all,
Ron.
Attached Files:
a" style="margin: 0px; padding: 10px 10px 0px; overflow: hidden; zoom: 1; border-radius: 5px; background: url("styles/default/xenforo/gradients/category-23px-light.png") 50% 0% repeat-x rgb(238, 241, 244);">

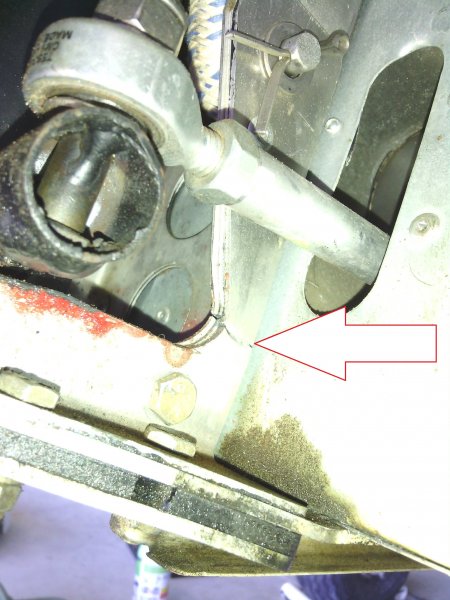

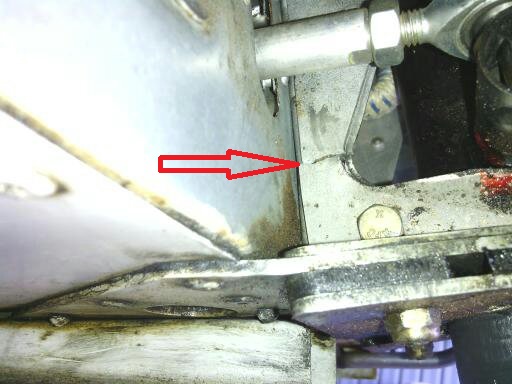

Left side view. note cracks in all 3 components.
File size:
58.9 KB
Views:
0

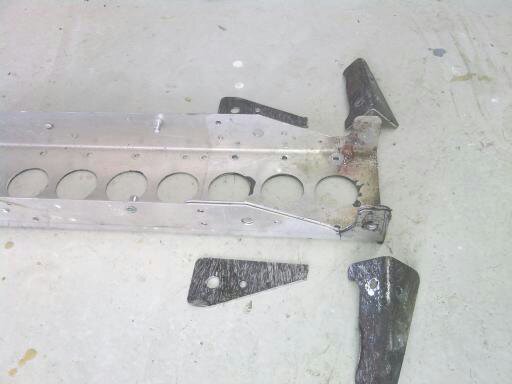

The assembly after removal.
File size:
26 KB
Views:
0
